RM120 RHINO RM120 Specifications & Technical Data (2017—2026)
Technical specs - RM120 RHINO
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 6.11 t
- Standard tyres
- 16/70-24
- Steering mode
- KL
- Transport length
- 6.9 m
- Transport width
- 2.05 m
- Transport height
- 3.2 m
- Travel speed
- 40 km/h
- Turning radius outside
- 7 m
- Model series
- RM
- Engine manuf.
- RHINO
- Engine type
- RM80-4J22T -115
- Engine power
- 85 kW
- Displacement
- 4.3 l
- Max. torque
- 200 Nm
- Emission level
- Tier 2
More technical details, like: drive, mouldboard width, front blade width, dimension lxwxh, revolutions at max torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

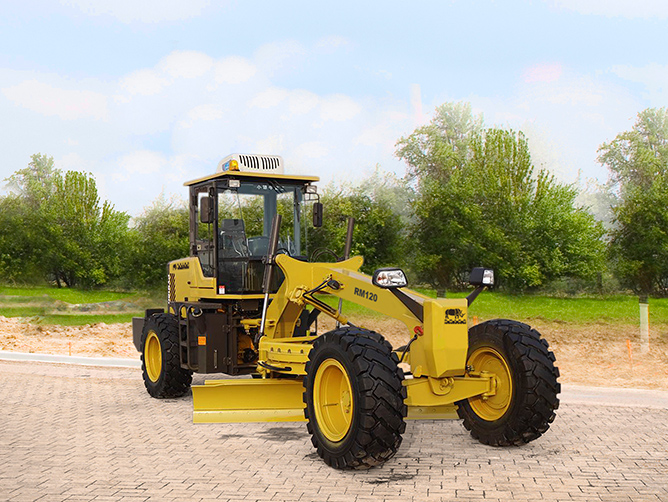

Basic model with ROPS cabin and central blade
Special equipment
- Diesel particulate filter
-
No
- Bilateral levelling automatic
-
No
- Front blade
-
No
- Rear ripper
-
Yes
- Aircondition
-
No
