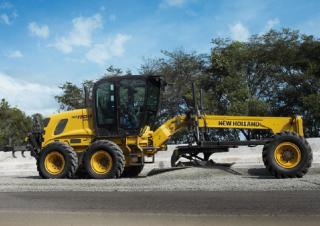

RG170.B New Holland RG170.B Specifications & Technical Data (2021—2026)

Weight: 15.587t – Standard tyres: 14x24 Tire – 12-ply – G2 – tubeless – Transport length: 8.534m – Transport width: 2.499m – Transport height: 3.323m – Mouldboard width: 3.658m

RG170.B

Years of manufacture: 2021—2026

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - RG170.B New Holland

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 15.587 t

Standard tyres: 14x24 Tire – 12-ply – G2 – tubeless

Transport length: 8.534 m

Transport width: 2.499 m

Transport height: 3.323 m

Mouldboard width: 3.658 m

Front blade width: 2.762 m

Travel speed: 44.1 km/h

Turning radius outside: 7.25 m

Model series: RG

Engine manuf.: New Holland

Engine type: 6.7L Tier III

Engine power: 193 HP

Displacement: 6.7 l

Revolutions at max torque: 1500 rpm

Max. torque: 830 Nm

No. of cylinders: 6

Cylinder bore x stroke: 104x132 mm

Emission level: Tier 3

More technical details, like: steering mode, drive, dimension lxwxh are available in the full technical specs.

Basic model with ROPS cabin and central blade

Special equipment

Diesel particulate filter: No
Bilateral levelling automatic: No
Front blade: No
Rear ripper: No
Aircondition: No

Download datasheets (PDF)

New Holland RG170.B FAQ

When was the New Holland RG170.B manufactured?

The New Holland RG170.B was first produced in 2021.

How much does the New Holland RG170.B grader weigh?

The New Holland RG170.B grader weighs 15.59 tons.

What are the transport dimensions of the New Holland RG170.B grader?

The New Holland RG170.B grader has a transport length of 8.53 meters, a transport width of 2.5 meters, and a transport height of 3.32 meters.

What is the travel speed of the New Holland RG170.B grader?

The New Holland RG170.B grader has a travel speed of 44.1 km/h.

What are the undercarriage specifications of the New Holland RG170.B grader?

The New Holland RG170.B grader is equipped with standard 14x24 tires that are 12-ply, G2, and tubeless.

What is the turning radius of the New Holland RG170.B grader?

The New Holland RG170.B grader has an outside turning radius of 7.25 meters.

What are the primary blade specifications of the New Holland RG170.B grader?

The New Holland RG170.B grader has a front blade width of 2.76 meters and a mouldboard width of 3.66 meters.
