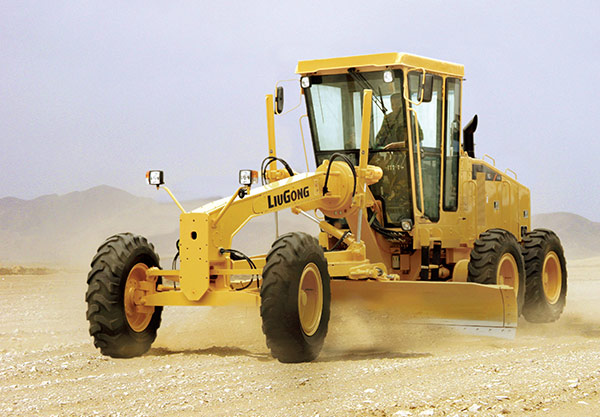

414 Liugong 414 Specifications & Technical Data (2017—2025)

Weight: 12.4t – Standard tyres: 13.00-24 – Transport length: 8.34m – Transport width: 2.465m – Transport height: 3.37m – Mouldboard width: 3.66m

Graders Liugong 414

Visit Liugong live at

Technical specs - 414 Liugong

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
12.4 t
Standard tyres
13.00-24
Transport length
8.34 m
Transport width
2.465 m
Transport height
3.37 m
Mouldboard width
3.66 m
Travel speed
41 km/h
Turning radius outside
7.3 m
Model series
GLG
Engine manuf.
Cummins
Engine type
6BTAA5.9
Engine power
106 kW
Displacement
5.9 l
Revolutions at max torque
2200 rpm
Max. torque
690/1300 Nm
No. of cylinders
6
Emission level
Tier 2/EU II

More technical details, like: steering mode, drive, front blade width, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin and central blade

Special equipment

Diesel particulate filter
No
Bilateral levelling automatic
No
Front blade
No
Rear ripper
No
Aircondition
No

Download datasheets (PDF)

Liugong 414 FAQ

When was the Liugong 414 manufactured?

The Liugong 414 was first produced in 2017.

How much does the Liugong 414 grader weigh?

The Liugong 414 grader weighs 12.4 tons.

What are the transport dimensions of the Liugong 414 grader?

The Liugong 414 grader has a transport length of 8.34 meters, a transport width of 2.47 meters, and a transport height of 3.37 meters.

What is the travel speed of the Liugong 414 grader?

The Liugong 414 grader has a travel speed of 41 km/h.

What are the standard tyre specifications of the Liugong 414 grader?

The Liugong 414 grader is equipped with standard tyres sized 13.00-24.

What is the turning radius of the Liugong 414 grader?

The Liugong 414 grader has an outside turning radius of 7.3 meters.

What is the mouldboard width of the Liugong 414 grader?

The Liugong 414 grader has a mouldboard width of 3.66 meters.

How much is a Liugong 414 Grader (2017u20132025) worth?

The residual value of the Liugong 414 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
