JMG200 JOTEC JMG200 Specifications & Technical Data (2017—2026)

Weight: 15t – Transport length: 9.123m – Transport width: 2.61m – Transport height: 3.44m – Mouldboard width: 3.965m – Travel speed: 38km/h

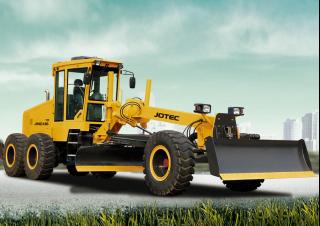

Graders JOTEC JMG200

Technical specs - JMG200 JOTEC

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
15 t
Transport length
9.123 m
Transport width
2.61 m
Transport height
3.44 m
Mouldboard width
3.965 m
Travel speed
38 km/h
Turning radius outside
7.8 m
Engine manuf.
Cummins
Engine type
6BT5.9-C180
Engine power
132 kW
Displacement
5.9 l

More technical details, like: standard tyres, steering mode, drive, front blade width, model series, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin and central blade

Special equipment

Diesel particulate filter
No
Bilateral levelling automatic
No
Front blade
Yes
Rear ripper
No
Aircondition
No

JOTEC JMG200 FAQ

When was the JOTEC JMG200 manufactured?

The JOTEC JMG200 was first produced in 2017.

How much does the JOTEC JMG200 grader weigh?

The JOTEC JMG200 grader weighs 15 tons.

What are the transport dimensions of the JOTEC JMG200 grader?

The JOTEC JMG200 grader has a transport length of 9.12 meters, a transport width of 2.61 meters, and a transport height of 3.44 meters.

What is the travel speed of the JOTEC JMG200 grader?

The JOTEC JMG200 grader has a travel speed of 38 km/h.

What is the outside turning radius of the JOTEC JMG200 grader?

The JOTEC JMG200 grader has an outside turning radius of 7.8 meters.

What is the mouldboard width of the JOTEC JMG200 grader?

The mouldboard width of the JOTEC JMG200 grader is 3.97 meters.

How much is a JOTEC JMG200 Grader (2017u20132025) worth?

The residual value of the JOTEC JMG200 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
