18M3 Caterpillar 18M3 Specifications & Technical Data (2016—2026)

Weight: 33.71t – Standard tyres: 23.5 R 25 – Steering mode: AL – Drive: A – Transport length: 12.05m – Transport width: 3.41m

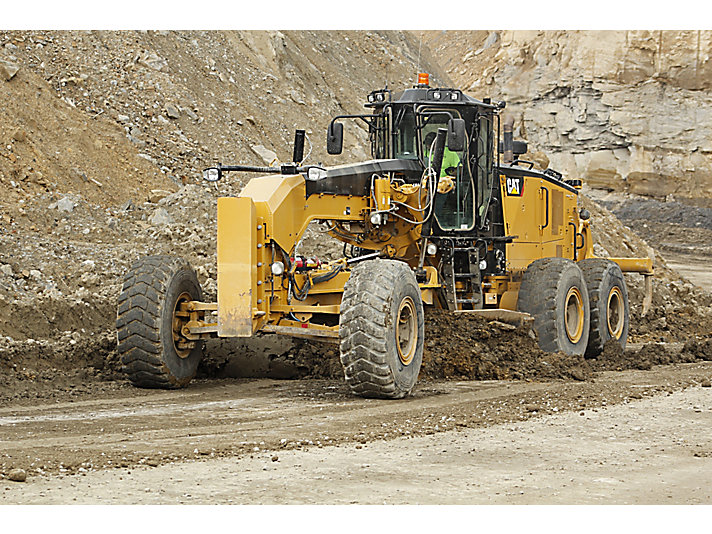

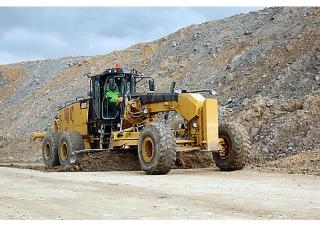

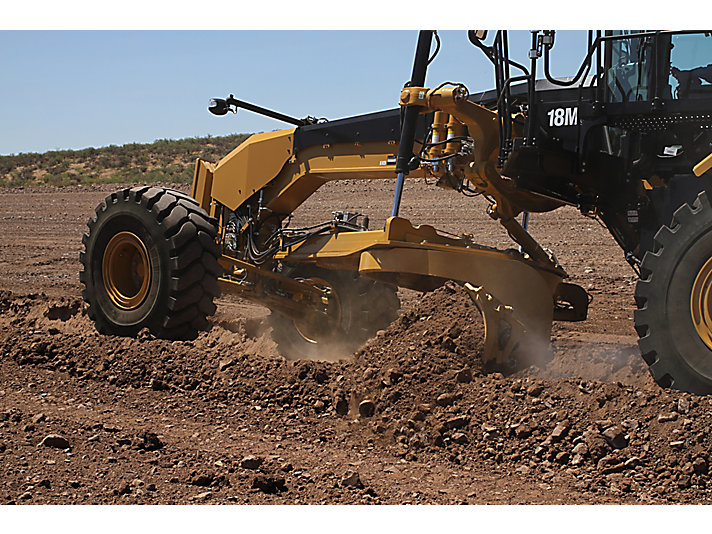

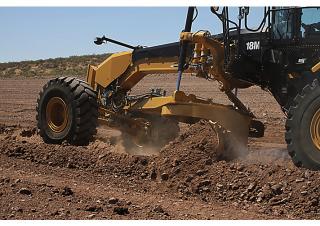

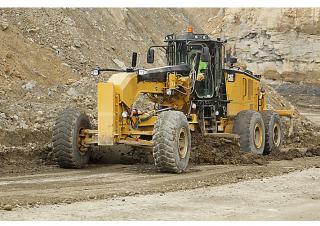

Graders Caterpillar 18M3
Graders Caterpillar 18M3
Graders Caterpillar 18M3
Graders Caterpillar 18M3
Graders Caterpillar 18M3
Graders Caterpillar 18M3
Graders Caterpillar 18M3
Graders Caterpillar 18M3

Technical specs - 18M3 Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
33.71 t
Standard tyres
23.5 R 25
Steering mode
AL
Drive
A
Transport length
12.05 m
Transport width
3.41 m
Transport height
3.75 m
Mouldboard width
5.5 m
Travel speed
51.7 km/h
Engine manuf.
Caterpillar
Engine type
C13 Acert VHP
Engine power
227 kW
Displacement
12.5 l
Max. torque
1771 Nm
No. of cylinders
6
Cylinder bore x stroke
130x157 mm
Emission level
Tier 4 f. IV

More technical details, like: front blade width, turning radius outside, model series, dimension lxwxh, revolutions at max torque are available in the full technical specs.

Basic model with ROPS cabin and central blade

Special equipment

Diesel particulate filter
Yes
Bilateral levelling automatic
No
Front blade
No
Rear ripper
No
Aircondition
Yes

Download specalog and datasheets (PDF)

Caterpillar 18M3 FAQ

When was the Caterpillar 18M3 manufactured?

The Caterpillar 18M3 was first produced in 2016.

How much does the Caterpillar 18M3 grader weigh?

The Caterpillar 18M3 grader weighs 33.71 tons.

What are the transport dimensions of the Caterpillar 18M3 grader?

The Caterpillar 18M3 grader has a transport length of 12.05 meters, a transport width of 3.41 meters, and a transport height of 3.75 meters.

What is the travel speed of the Caterpillar 18M3 grader?

The Caterpillar 18M3 grader has a travel speed of 51.7 km/h.

What are the undercarriage specifications of the Caterpillar 18M3 grader?

The Caterpillar 18M3 grader has an all-wheel drive system and uses standard tyres sized 23.5 R 25.

What is the steering mode of the Caterpillar 18M3 grader?

The Caterpillar 18M3 grader has all-wheel steering.

What is the mouldboard width of the Caterpillar 18M3 grader?

The Caterpillar 18M3 grader has a mouldboard width of 5.5 meters.

How much is a Caterpillar 18M3 Grader (2016u20132025) worth?

The residual value of the Caterpillar 18M3 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
