160M3 AWD Caterpillar 160M3 AWD Specifications & Technical Data (2017—2026)
.jpeg)
.jpeg)
.jpeg)
.jpeg)
.jpeg)
.jpeg)
Technical specs - 160M3 AWD Caterpillar
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 21.55 t
- Standard tyres
- 14.0R24
- Transport length
- 8.91 m
- Transport width
- 2.51 m
- Transport height
- 3.31 m
- Mouldboard width
- 4 m
- Travel speed
- 47.4 km/h
- Turning radius outside
- 7.8 m
- Engine manuf.
- Caterpillar
- Engine type
- C9.3 Acert
- Engine power
- 165 kW
- Displacement
- 9 l
- Max. torque
- 1464 Nm
- No. of cylinders
- 6
- Cylinder bore x stroke
- 115 x 149 mm
- Emission level
- Tier 4 f. IV
More technical details, like: steering mode, drive, front blade width, model series, dimension lxwxh, revolutions at max torque are available in the full technical specs.
Basic model with ROPS cabin and central blade
Special equipment
- Diesel particulate filter
-
No
- Bilateral levelling automatic
-
No
- Front blade
-
No
- Rear ripper
-
No
- Aircondition
-
Yes
Download specalog and datasheets (PDF)
Caterpillar 160M3 AWD FAQ
How much does the Caterpillar 160M3 AWD weigh?
What are the transport dimensions of the Caterpillar 160M3 AWD grader?
What is the travel speed of the Caterpillar 160M3 AWD grader?
What is the standard tyre size of the Caterpillar 160M3 AWD grader?
What is the turning radius of the Caterpillar 160M3 AWD grader?
What is the mouldboard width of the Caterpillar 160M3 AWD grader?
How much is a Caterpillar 160M3 AWD Grader (2017u20132025) worth?
Machine inspection
Ask for inspection of your Caterpillar 160M3 AWD from experts
Mevas is an international operating inspection service for used heavy machinery. Construction machinery inspectors are available in more than 20 countries.
Use this service to minimise the risk when buying used equipment. An inspection by Mevas costs less than repairing a defective hydraulic cylinder.
Provided by:
Buy & Rent
Compare Caterpillar 160M3 AWD with similar Graders

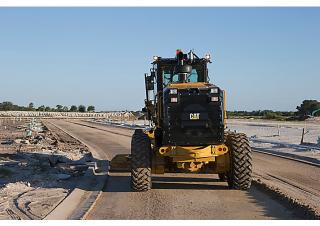

.jpeg)
