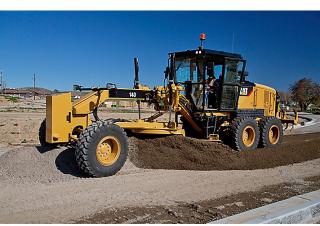

140 Caterpillar 140 Specifications & Technical Data (2017—2026)

Weight: 19.2t – Drive: A – Transport length: 10.1m – Transport width: 2.48m – Transport height: 3.35m – Mouldboard width: 3.7m

140

Years of manufacture: 2017—2026

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 140 Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 19.2 t

Drive: A

Transport length: 10.1 m

Transport width: 2.48 m

Transport height: 3.35 m

Mouldboard width: 3.7 m

Engine manuf.: Caterpillar

Engine type: C9.3 Acert

Engine power: 186 kW

Displacement: 9.3 l

Revolutions at max torque: 1000 rpm

Max. torque: 1121 Nm

No. of cylinders: 6

Cylinder bore x stroke: 112x149 mm

Emission level: Tier 4 Final/EU IV

More technical details, like: standard tyres, steering mode, front blade width, travel speed, turning radius outside, model series, dimension lxwxh are available in the full technical specs.

Basic model with ROPS cabin and central blade

Special equipment

Diesel particulate filter: No
Bilateral levelling automatic: No
Front blade: No
Rear ripper: No
Aircondition: No

Download specalog and datasheets (PDF)

Caterpillar 140 FAQ

When was the Caterpillar 140 manufactured?

The Caterpillar 140 was first produced in 2017.

How much does the Caterpillar 140 grader weigh?

The Caterpillar 140 grader weighs 19.2 tons.

What are the transport dimensions of the Caterpillar 140 grader?

The Caterpillar 140 grader has a transport length of 10.1 meters, a transport width of 2.48 meters, and a transport height of 3.35 meters.

What is the drive type of the Caterpillar 140 grader?

The Caterpillar 140 grader has an All-wheel drive type.

What is the mouldboard width of the Caterpillar 140 grader?

The Caterpillar 140 grader has a mouldboard width of 3.7 meters.
