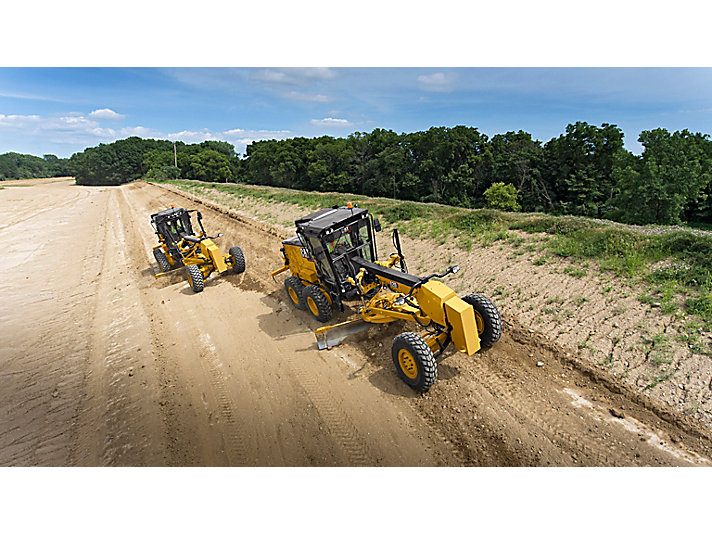

120Joy-14A AWD Caterpillar 120Joy-14A AWD Specifications & Technical Data (2019—2026)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
Technical specs - 120Joy-14A AWD Caterpillar
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 15.91 t
- Standard tyres
- 17.5R25
- Drive
- A
- Transport length
- 9.84 m
- Transport width
- 2.59 m
- Transport height
- 3.83 m
- Mouldboard width
- 3.7 m
- Travel speed
- 48.3 km/h
- Turning radius outside
- 7.4 m
- Engine manuf.
- Caterpillar
- Engine type
- C7.1
- Engine power
- 141 kW
- Displacement
- 7 l
- Revolutions at max torque
- 2100 rpm
- Max. torque
- 822 Nm
- No. of cylinders
- 6
- Cylinder bore x stroke
- 105x135 mm
- Emission level
- U.S. EPA Tier 4 Final / EU V
More technical details, like: steering mode, front blade width, model series, dimension lxwxh are available in the full technical specs.
Basic model with ROPS cabin and central blade
Special equipment
- Diesel particulate filter
-
Yes
- Bilateral levelling automatic
-
No
- Front blade
-
No
- Rear ripper
-
No
- Aircondition
-
Yes
