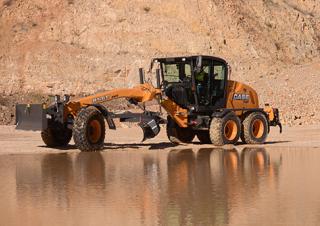

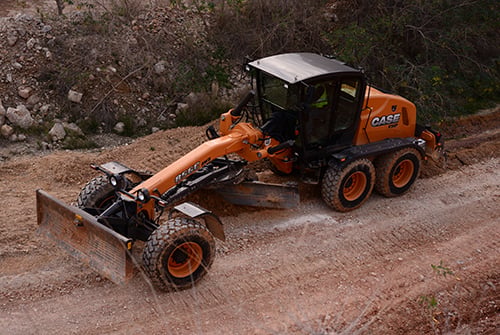

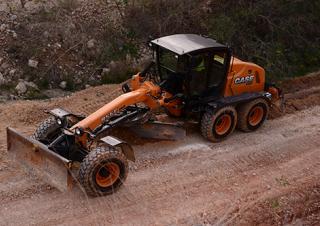

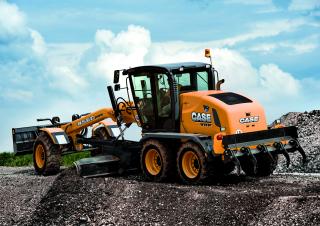

856C Case 856C Specifications & Technical Data (2015—2020)
.jpg)
.jpg)
.jpg)
.jpg)
Technical specs - 856C Case
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 16.3 t
- Standard tyres
- 17.5 25 EM
- Drive
- T
- Transport length
- 8.6 m
- Transport width
- 2.549 m
- Transport height
- 3.674 m
- Mouldboard width
- 3.7 m
- Front blade width
- 2.45 m
- Travel speed
- 38 km/h
- Turning radius outside
- 8.1 m
- Model series
- C
- Engine manuf.
- FPT
- Engine type
- 667 TA
- Engine power
- 142 kW
- Displacement
- 6.7 l
- Revolutions at max torque
- 1400 rpm
- Max. torque
- 850 Nm
- No. of cylinders
- 6
- Emission level
- T 4f
More technical details, like: steering mode, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.
Basic model with ROPS cabin and central blade
Special equipment
- Diesel particulate filter
-
No
- Bilateral levelling automatic
-
No
- Front blade
-
Yes
- Rear ripper
-
Yes
- Aircondition
-
Yes
Download datasheets (PDF)
Case 856C FAQ
How much does the Case 856C grader weigh?
What are the transport dimensions of the Case 856C grader?
What is the travel speed of the Case 856C grader?
What are the undercarriage specifications of the Case 856C grader?
What is the turning radius of the Case 856C grader?
What are the specifications of the primary work tool on the Case 856C grader?
How much is a Case 856C Grader (2015u20132020) worth?
