DX300NLC-3 Doosan DX300NLC-3 Specifications & Technical Data (2013—2017)

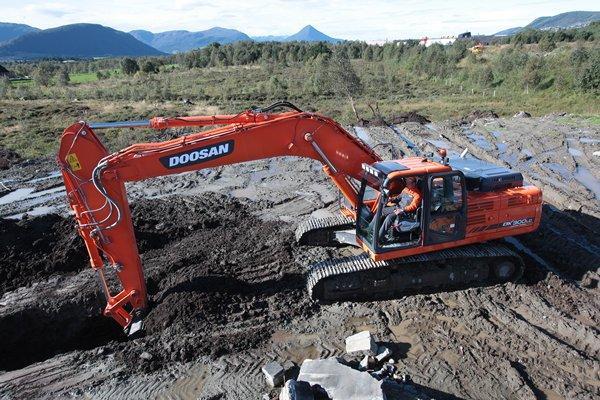

Doosan DX300NLC-3 is a crawler excavator manufactured from 2013 to 2017, with a weight of 30 tons. It features a track width of 60…

Doosan DX300NLC-3 is a crawler excavator manufactured from 2013 to 2017, with a weight of 30 tons. It features a track width of 600 mm, a transport length of 10.62 meters, a transport width of 3 meters, and a transport height of 3.345 meters. The machine has a tear-out force of 136.3 kN and comes equipped with air conditioning and an overload alert system.

Electric Crawler Excavators Doosan DX300NLC-3
Electric Crawler Excavators Doosan DX300NLC-3
Electric Crawler Excavators Doosan DX300NLC-3
Electric Crawler Excavators Doosan DX300NLC-3
Electric Crawler Excavators Doosan DX300NLC-3
Electric Crawler Excavators Doosan DX300NLC-3
Electric Crawler Excavators Doosan DX300NLC-3
Electric Crawler Excavators Doosan DX300NLC-3

Technical specs - DX300NLC-3 Doosan

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
30 t
Transport length
10.62 m
Transport width
3 m
Transport height
3.345 m
Bucket capacity
1.27 m³
Undercarriage
NLC
Track width
600 mm
Boom
MB/VA
Max. Reach horizontal
11.27 m
Dredging depth
7.4 m
Tear-out force
136.3 kN
Model series
DX

More technical details, like: bucket capacity min., bucket capacity max., bucket width, battery voltage, battery capacity, runtime, dipper length - standard, emission rating, engine manufacturer, engine model, aspiration, displacement...

More technical details, like: bucket capacity min., bucket capacity max., bucket width, battery voltage, battery capacity, runtime, dipper length - standard, emission rating, engine manufacturer, engine model, aspiration, displacement, rated speed, engine output - net, engine output - gross, number of track rollers - each side, track shoe width, transport length mono boom, transport height - maximum, overall undercarriage width, overall width - maximum, track length on ground, tailswing radius, zero tailswing?, ground clearance, heaped bucket capacity - standard, bucket capacity - smallest, bucket capacity - largest, overall bucket width - standard, overall bucket width - smallest, overall bucket width - largest, width over fixed tracks, track gauge - standard, digging reach - mono boom, ground level reach - mono boom, dig height - mono boom, dump height - mono boom, vertical wall - mono boom, dig depth - mono boom, mono boom - size, standard dipper, longest dipper, fuel tank, hydraulic tank, ground bearing pressure, dipper tearout, bucket breakout, end lift - max reach, side lift - max reach, main pump, number of main pumps, total flow, boom pressure, operating weight are available in the full technical specs.

Special equipment

Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
Yes
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No
