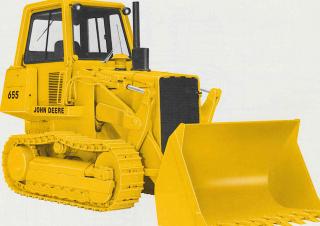

655 John Deere Construction 655 Specifications & Technical Data (1983—2021)
Technical specs - 655 John Deere Construction
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 14.7 t
- Transport length
- 5.56 m
- Transport width
- 2.1 m
- Transport height
- 3.09 m
- Bucket width
- 2.1 m
- Bucket capacity
- 1.53 m³
- Track width
- 560 mm
- Travel speed
- 10.5 km/h
- Max. discharge height
- 2.83 m
- Soil pressure
- 0.83 kg/cm²
- Engine manuf.
- John Deere
- Engine type
- N/A
- Engine power
- 91 kW
- Displacement
- 6.79 l
- Max. torque
- 468 Nm
- No. of cylinders
- 6
- Cylinder bore x stroke
- 106.4x127 mm
More technical details, like: model series, dimension lxwxh, revolutions at max torque, emission level are available in the full technical specs.
Basic model with ROPS cabin, std. shovel and teeth
Special equipment
- Diesel particulate filter
-
No
- Rear ripper
-
No
- Aircondition
-
No
