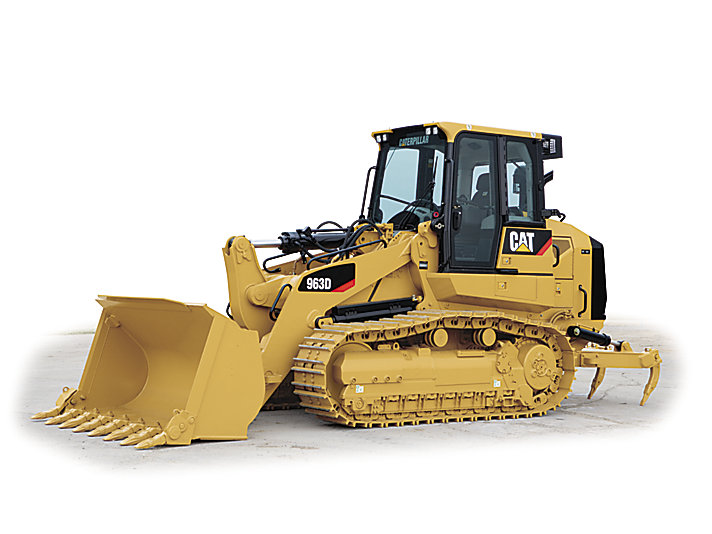

Name: Caterpillar 963D Crawler Loaders
Brand: Caterpillar

Technical specs - 963D Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 20.5 t

Transport length: 2.4 m

Transport width: 3.4 m

Transport height: 4.61 m

Bucket width: 2.612 m

Bucket capacity: 2.3 m³

Track width: 550 mm

Travel speed: 10 km/h

Max. discharge height: 2.915 m

Engine manuf.: Caterpillar

Engine type: C6.6 Acert

Engine power: 141 kW

Displacement: 6.6 l

Cylinder bore x stroke: 105x127o mm

Emission level: Euro III a

More technical details, like: soil pressure, model series, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders, engine manufacturer, engine model, emission rating, aspiration, engine output - net, transmission type...

More technical details, like: soil pressure, model series, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders, engine manufacturer, engine model, emission rating, aspiration, engine output - net, transmission type, transmission manufacturer, ranges fwd / rev, carrier rollers per side - std, track rollers per side - std, track shoe width, standard shoe type, track shoes per side - std, overall length, max. height, width no bucket - std, track length on ground, ground clearance, track gauge - standard, shovel 1 width, ripper type 1, max. penetration - ripper 1, shovel 1 dump height 45° max, shovel 1 dump reach 45° max., digging depth, fuel tank capacity, shovel 1 type, shovel 1 capacity, cycle time - raise, ground bearing pressure - standard, static tipping load shovel 1, operating weight std are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Rear ripper: No
Aircondition: Yes

Download specalog and datasheets (PDF)
