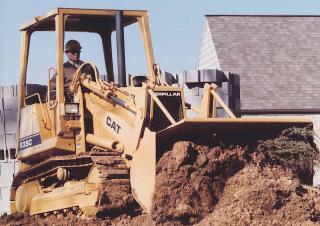

935C Caterpillar 935C Specifications & Technical Data (1988—2026)

Weight: 8.205t – Transport length: 4.2m – Transport width: 1.97m – Transport height: 4.33m – Bucket width: 1.97m – Bucket capacity: 1m³

Technical specs - 935C Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
8.205 t
Transport length
4.2 m
Transport width
1.97 m
Transport height
4.33 m
Bucket width
1.97 m
Bucket capacity
1 m³
Track width
355 mm
Travel speed
10.5 km/h
Max. discharge height
2.58 m
Soil pressure
0.61 kg/cm²
Engine manuf.
Caterpillar
Engine type
3204
Engine power
63 kW
Displacement
5.2 l
No. of cylinders
4
Cylinder bore x stroke
114x127 mm

More technical details, like: model series, dimension lxwxh, revolutions at max torque, max. torque, emission level are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter
No
Rear ripper
No
Aircondition
No
