EX5600-7B Hitachi excavator specs & Dimensions (2022 - 2026)

Hitachi EX5600-7B is a crawler excavator manufactured since 2022. It features a track width of 1400 mm, a transport width of 10.3 …

Hitachi EX5600-7B is a crawler excavator manufactured since 2022. It features a track width of 1400 mm, a transport width of 10.3 m, and a transport height of 8.68 m. The machine has a dredging depth of 4.8 m and a maximum horizontal reach of 17 m. Its bucket capacity is 31 m³.

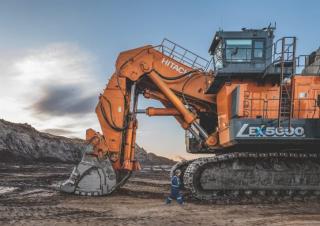

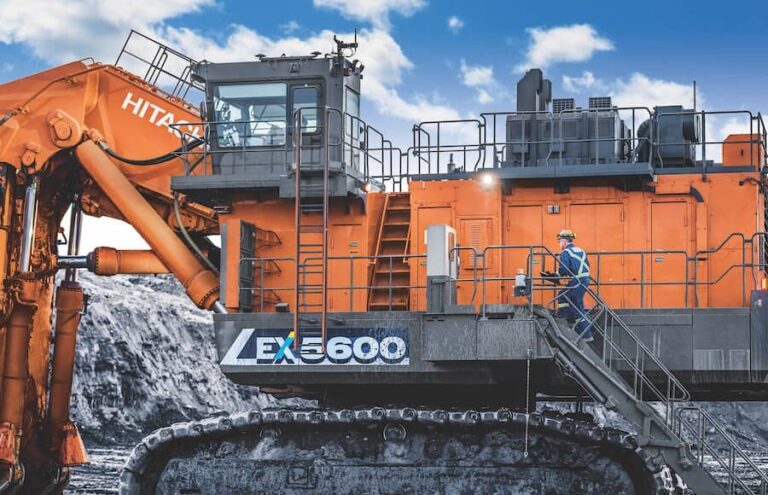

Crawler Excavators Hitachi EX5600-7B
Crawler Excavators Hitachi EX5600-7B
Crawler Excavators Hitachi EX5600-7B
Crawler Excavators Hitachi EX5600-7B

Visit Hitachi live at

Technical specs - EX5600-7B Hitachi

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Transport width
10.3 m
Transport height
8.68 m
Bucket capacity
31 m³
Track width
1400 mm
Max. Reach horizontal
17 m
Dredging depth
4.8 m
Model series
EX
Engine manuf.
Cummins
Engine type
QSKTA50-CE
Engine power
2x1119 kW
Displacement
2x50 l

More technical details, like: weight, transport length, bucket capacity min., bucket capacity max., undercarriage, boom, tear-out force, bucket width, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders...

More technical details, like: weight, transport length, bucket capacity min., bucket capacity max., undercarriage, boom, tear-out force, bucket width, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Hitachi EX5600-7B FAQ

When was the Hitachi EX5600-7B manufactured?

The Hitachi EX5600-7B was first produced in 2022.

What are the transport dimensions of the Hitachi EX5600-7B?

The Hitachi EX5600-7B has a transport width of 10.3 meters and a transport height of 8.68 meters.

What is the track width of the Hitachi EX5600-7B's undercarriage?

The Hitachi EX5600-7B has a track width of 1400 mm.

What are the dredging depth and maximum horizontal reach of the Hitachi EX5600-7B?

The Hitachi EX5600-7B has a dredging depth of 4.8 meters and a maximum horizontal reach of 17 meters.

What is the bucket capacity of the Hitachi EX5600-7B crawler excavator?

The Hitachi EX5600-7B crawler excavator has a bucket capacity of 31 cubic meters.

How much is a Hitachi EX5600-7B Crawler excavator (2022u20132025) worth?

The residual value of the Hitachi EX5600-7B depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
