EX2600-6 Hitachi excavator specs & Dimensions (2009 - 2026)

Hitachi EX2600-6 is a crawler excavator manufactured since 2009, with a weight of 252 tons. It features a track width of 1000 mm, …

Hitachi EX2600-6 is a crawler excavator manufactured since 2009, with a weight of 252 tons. It features a track width of 1000 mm, a transport width of 8 meters, and a transport height of 7 meters. The machine has a tear-out force of 943 kN and a bucket capacity of 15 cubic meters. It is equipped with air conditioning.

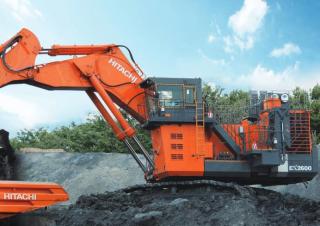

Crawler Excavators Hitachi EX2600-6
Crawler Excavators Hitachi EX2600-6
Crawler Excavators Hitachi EX2600-6
Crawler Excavators Hitachi EX2600-6
Crawler Excavators Hitachi EX2600-6
Crawler Excavators Hitachi EX2600-6

Visit Hitachi live at

Technical specs - EX2600-6 Hitachi

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
252 t
Transport width
8 m
Transport height
7 m
Bucket capacity
15 m³
Track width
1000 mm
Max. Reach horizontal
14.06 m
Dredging depth
3.72 m
Tear-out force
943 kN
Model series
EX
Engine manuf.
Cummins
Engine type
QSKTA50CE
Engine power
1398 kW
Displacement
50.3 l
Revolutions at max torque
1500 rpm
Max. torque
7871 Nm
No. of cylinders
16
Cylinder bore x stroke
159x159 mm
Emission level
Tier 2

More technical details, like: transport length, bucket capacity min., bucket capacity max., undercarriage, boom, bucket width, dimension lxwxh are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Hitachi EX2600-6 FAQ

When was the Hitachi EX2600-6 manufactured?

The Hitachi EX2600-6 was first produced in 2009.

How much does the Hitachi EX2600-6 weigh?

The Hitachi EX2600-6 weighs 252 tons.

What are the transport dimensions of the Hitachi EX2600-6?

The Hitachi EX2600-6 has a transport width of 8 meters and a transport height of 7 meters.

What is the track width of the Hitachi EX2600-6's undercarriage?

The Hitachi EX2600-6 has a track width of 1000 mm.

What are the excavation performance specifications of the Hitachi EX2600-6?

The Hitachi EX2600-6 has a dredging depth of 3.72 meters and a maximum horizontal reach of 14.06 meters.

What is the power rating of the Hitachi EX2600-6?

The available data does not provide the power rating for the Hitachi EX2600-6.

What is the bucket capacity of the Hitachi EX2600-6 excavator?

The Hitachi EX2600-6 excavator has a bucket capacity of 15 cubic meters.

How much is a Hitachi EX2600-6 Crawler excavator (2009u20132025) worth?

The residual value of the Hitachi EX2600-6 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Hitachi EX2600-6 overview

Hitachi EX2600-6 features overview

Giant-Sized Productivity Based on Hitachi's Theory of Evolution.

Each Hitachi generation listens to the needs of the work site and gives birth to an even-better new generation.


Strategically Positioned Oil Cooler—Helps keep oil temperatures.

The oil cooler is used for optimal cooling efficiency. It is positioned far from the engine radiator for even better cooling potential.


Engine

Powerful Single Engine—Ready for the task.

Time-proven Cummins diesel engine produces a total of 1 119 kW (1 500 HP) for handling the big excavation jobs.


Efficient E-P Control—Adjusts power output to the work being performed.

Hitachi's computer-aided Engine-Pump Control (E-P Control) coaxes optimum efficiency from the engine and hydraulic pumps. This innovative system senses load demand and controls engine and pump output for maximum operating efficiency.


Large Bucket—Designed to enhance efficiency.

The large bucket has been shaped specifically to enhance scooping and loading operations. Its sharp tilt angle helps boost operating efficiency.


Undercarriage

Rugged Track Links

Shoes include roller guides for extended service life. This design has proven itself on Hitachi’s popular Giant EX Series. The roller guides have been added to help extend service life.


Constant Correct Track Tension

Nitrogen gas accumulators absorb abnormal track tension. This helps prevent abnormal track tension from causing damage. Travel is automatically stopped if accumulator pressure exceeds a preset level.
