EX1900-6 Hitachi excavator specs & Dimensions (2017 - 2026)

Hitachi EX1900-6 is a crawler excavator manufactured since 2017, with a weight of 191 tons. It features a track width of 800 mm, a…

Hitachi EX1900-6 is a crawler excavator manufactured since 2017, with a weight of 191 tons. It features a track width of 800 mm, a transport width of 6 meters, and a transport height of 6 meters. The machine has a tear-out force of 754 kN, a dredging depth of 5 meters, and a maximum horizontal reach of 13 meters. The bucket capacity is 11 cubic meters, and it is equipped with air conditioning.

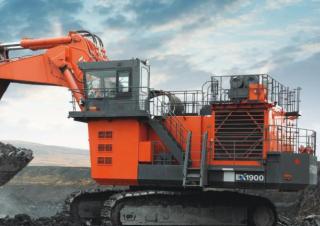

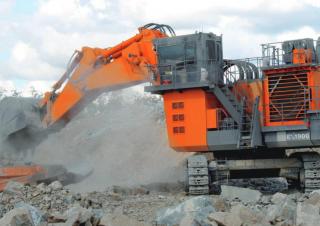

Crawler Excavators Hitachi EX1900-6
Crawler Excavators Hitachi EX1900-6
Crawler Excavators Hitachi EX1900-6
Crawler Excavators Hitachi EX1900-6

Visit Hitachi live at

Technical specs - EX1900-6 Hitachi

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
191 t
Transport width
6.66 m
Transport height
6.99 m
Bucket capacity
11 m³
Track width
800 mm
Max. Reach horizontal
13.43 m
Dredging depth
5.92 m
Tear-out force
754 kN
Model series
EX
Engine manuf.
Cummins
Engine type
QSKTA38CE
Engine power
775 kW
Displacement
37.8 l
Emission level
Tier 2

More technical details, like: transport length, bucket capacity min., bucket capacity max., undercarriage, boom, bucket width, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Hitachi EX1900-6 FAQ

When was the Hitachi EX1900-6 manufactured?

The Hitachi EX1900-6 was first produced in 2017.

How much does the Hitachi EX1900-6 weigh?

The Hitachi EX1900-6 weighs 191 tons.

What are the transport dimensions of the Hitachi EX1900-6?

The Hitachi EX1900-6 has a transport width of 6.66 meters and a transport height of 6.99 meters.

What is the track width of the Hitachi EX1900-6's undercarriage?

The Hitachi EX1900-6 has a track width of 800 mm.

What are the excavation specifications of the Hitachi EX1900-6?

The Hitachi EX1900-6 has a dredging depth of 5.92 meters and a maximum horizontal reach of 13.43 meters.

What is the tear-out force of the Hitachi EX1900-6, given that no power rating data is available?

The Hitachi EX1900-6 has a tear-out force of 754 kN.

What is the bucket capacity of the Hitachi EX1900-6 crawler excavator?

The bucket capacity of the Hitachi EX1900-6 is 11 cubic meters.

How much is a Hitachi EX1900-6 Crawler excavator (2017u20132025) worth?

The residual value of the Hitachi EX1900-6 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
