EX 5500-5 Hitachi excavator specs & Dimensions (2007 - 2010)

Model rating
1,00 / 10

Hitachi EX 5500-5 is a crawler excavator manufactured from 2007 to 2010, with a weight of 518 tons and a track width of 1400 mm. I…

Hitachi EX 5500-5 is a crawler excavator manufactured from 2007 to 2010, with a weight of 518 tons and a track width of 1400 mm. It has a tear-out force of 1570 kN, a dredging depth of 9 meters, and a bucket capacity of 29 cubic meters. The excavator is equipped with air conditioning.

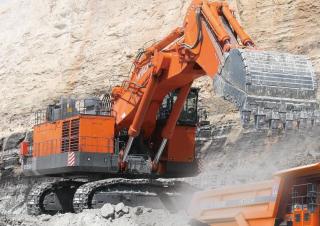

Crawler Excavators Hitachi EX 5500-5

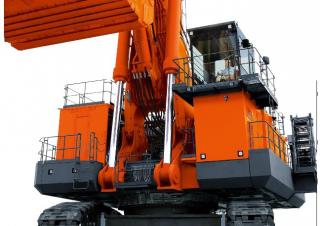

Crawler Excavators Hitachi EX 5500-5

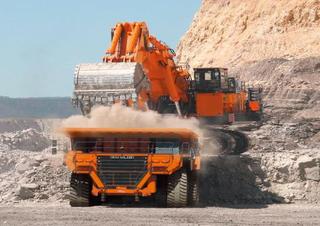

Crawler Excavators Hitachi EX 5500-5
Crawler Excavators Hitachi EX 5500-5
Crawler Excavators Hitachi EX 5500-5
Crawler Excavators Hitachi EX 5500-5

Visit Hitachi live at

Technical specs - EX 5500-5 Hitachi

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
518 t
Bucket capacity
29 m³
Undercarriage
HD
Track width
1400 mm
Max. Reach horizontal
20.1 m
Dredging depth
9 m
Tear-out force
1570 kN
Model series
EX
Engine manuf.
Cummins
Engine type
QSK45C
Engine power
1044 kW
Displacement
90 l
Revolutions at max torque
1400 rpm

More technical details, like: transport length, transport width, transport height, bucket capacity min., bucket capacity max., boom, bucket width, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Hitachi EX 5500-5 FAQ

When was the Hitachi EX 5500-5 manufactured?

The Hitachi EX 5500-5 was manufactured from 2007 to 2010.

How much does the Hitachi EX 5500-5 weigh?

The Hitachi EX 5500-5 weighs 518 tons.

What are the undercarriage specifications of the Hitachi EX 5500-5?

The Hitachi EX 5500-5 has a heavy duty undercarriage with a track width of 1400 mm.

What is the excavation performance of the Hitachi EX 5500-5?

The Hitachi EX 5500-5 has a dredging depth of 9 meters and a maximum horizontal reach of 20.1 meters.

What is the tear-out force of the Hitachi EX 5500-5?

The Hitachi EX 5500-5 has a tear-out force of 1570 kN.

What is the bucket capacity of the Hitachi EX 5500-5?

The bucket capacity of the Hitachi EX 5500-5 is 29 cubic meters.

How much is a Hitachi EX 5500-5 Crawler excavator (2007u20132010) worth?

The residual value of the Hitachi EX 5500-5 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
