EX 2500-6 Hitachi excavator specs & Dimensions (2007 - 2012)

Model rating
1,00 / 10

Hitachi EX 2500-6 is a crawler excavator manufactured from 2007 to 2012. It has a weight of 248 tons and a track width of 1000 mm.…

Hitachi EX 2500-6 is a crawler excavator manufactured from 2007 to 2012. It has a weight of 248 tons and a track width of 1000 mm. The transport dimensions are 10.125 meters in length, 7.43 meters in width, and 7.25 meters in height. The excavator features a tear-out force of 825 kN and a bucket capacity of 15 cubic meters. It is equipped with air conditioning.

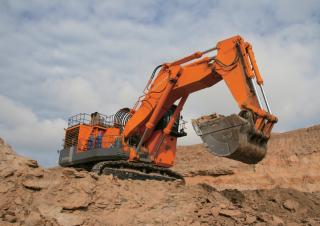

Crawler Excavators Hitachi EX 2500-6

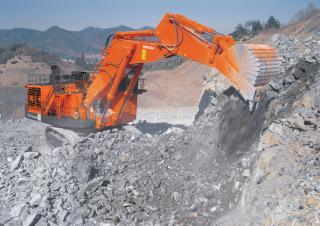

Crawler Excavators Hitachi EX 2500-6
Crawler Excavators Hitachi EX 2500-6
Crawler Excavators Hitachi EX 2500-6
Crawler Excavators Hitachi EX 2500-6
Crawler Excavators Hitachi EX 2500-6
Crawler Excavators Hitachi EX 2500-6
Crawler Excavators Hitachi EX 2500-6

Visit Hitachi live at

Technical specs - EX 2500-6 Hitachi

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
248 t
Transport length
10.125 m
Transport width
7.43 m
Transport height
7.25 m
Bucket capacity
15 m³
Undercarriage
HD
Track width
1000 mm
Max. Reach horizontal
17.05 m
Dredging depth
8.57 m
Tear-out force
825 kN
Model series
EX
Engine manuf.
Cummins
Engine type
QSKTA50CE
Engine power
1044 kW
Displacement
50 l
Revolutions at max torque
1300 rpm

More technical details, like: bucket capacity min., bucket capacity max., boom, bucket width, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Hitachi EX 2500-6 FAQ

When was the Hitachi EX 2500-6 manufactured?

The Hitachi EX 2500-6 was manufactured from 2007 to 2012.

How much does the Hitachi EX 2500-6 weigh?

The Hitachi EX 2500-6 weighs 248 tons.

What are the transport dimensions of the Hitachi EX 2500-6?

The Hitachi EX 2500-6 has a transport length of 10.13 meters, a transport width of 7.43 meters, and a transport height of 7.25 meters.

What are the undercarriage specifications of the Hitachi EX 2500-6?

The Hitachi EX 2500-6 has a heavy duty undercarriage with a track width of 1000 mm.

What are the excavation performance specifications of the Hitachi EX 2500-6?

The Hitachi EX 2500-6 has a dredging depth of 8.57 meters and a maximum horizontal reach of 17.05 meters.

What is the tear-out force of the Hitachi EX 2500-6?

The Hitachi EX 2500-6 has a tear-out force of 825 kN.

What is the bucket capacity of the Hitachi EX 2500-6?

The Hitachi EX 2500-6 has a bucket capacity of 15 cubic meters.

How much is a Hitachi EX 2500-6 Crawler excavator (2007u20132012) worth?

The residual value of the Hitachi EX 2500-6 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Hitachi EX 2500-6 overview

Hitachi EX 2500-6 features overview

Giant-Sized Productivity

Each Hitachi generation listens to the needs of the work site and gives birth to an even-better new generation.


High Visibility & 4 Meter Cab Height

Gives the operator a clear view, even when a large 200 US ton class dump truck is being loaded. This high height and forward-sloping cab provides a view that boosts productivity.


Engine

Powerful Single Engine—Ready for the task.

Time-proven Cummins diesel engine produces a total of 1 044 kW (1 400 HP) for handling the big excavation jobs.


Efficient E-P Control—Adjusts power output to the work being performed.

Hitachi's computer-aided Engine-Pump Control E-P Control coaxes optimum efficiency from the engine and hydraulic pumps. This innovative system senses load demand and controls engine and pump output for maximum operating efficiency.


Large Bucket—Designed to enhance efficiency.

The large bucket has been shaped specifically to enhance scooping and loading operations. Its sharp tilt angle helps boost operating efficiency.


MIC Mining

The MIC Mining comprises its unique DLU (Data-logging unit) that continuously records performance of the engine and hydraulic system. The record can be downloaded by PC and PDA.


Hydraulic and electronic system

Strategically Positioned Oil Coolers

Two oil coolers are used for optimal cooling efficiency. They are positioned far from the engine radiator for even better cooling potential.


Undercarriage

Rugged Track Links

Shoes include roller guides for extended service life. This design has proven itself on Hitachi’s popular Giant EX Series. The roller guides have been added to help extend service life.


Constant Correct Track Tension

Nitrogen gas accumulators absorb abnormal track tension. This helps prevent abnormal track tension from causing damage. Travel is automatically stopped if accumulator pressure exceeds a preset level.


Cab

Rugged Comfortable Cab

Fluid filled elastic mounts help absorb vibration to provide durability and a comfortable ride. The top guard, conforming to OPG level II (ISO), is provided on the cab.


Efficient Cab Layout

The ergonomic layout of the cab means the operator will do less stretching and reaching when operating the controls. This adds up to less operator fatigue and greater operating efficiency.


Air Suspension Seat

The operator seat cushion can automatically be adjusted according to the operator weight. This is convenient for a machine operated by two or more operators.


Adjustable Sliding Cockpit

The operator can adjust the position of the levers and the seat to custom fit his size and operating style.


Constant-Cab-Comfort Air Conditioner

The operator can monitor machine conditions and operating status with a 10.5-inch color LCD. The controller provides instant fault diagnosis through all sensors, displaying warnings and countermeasures if failure arises.
