EX 1900-6 Hitachi excavator specs & Dimensions (2007 - 2012)

Model rating
10,00 / 10

Hitachi EX 1900-6 is a crawler excavator manufactured from 2007 to 2012. It has a weight of 192 tons and a track width of 800 mm. …

Hitachi EX 1900-6 is a crawler excavator manufactured from 2007 to 2012. It has a weight of 192 tons and a track width of 800 mm. The transport dimensions are 9.73 meters in length, 6.66 meters in width, and 6.99 meters in height. The excavator features a tear-out force of 719 kN and a bucket capacity of 12 cubic meters. It is equipped with air conditioning.

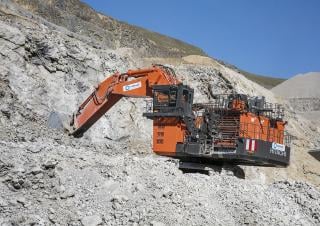

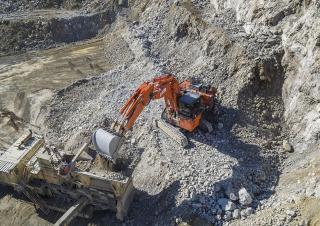

Crawler Excavators Hitachi EX 1900-6
Crawler Excavators Hitachi EX 1900-6
Crawler Excavators Hitachi EX 1900-6
Crawler Excavators Hitachi EX 1900-6
Crawler Excavators Hitachi EX 1900-6
Crawler Excavators Hitachi EX 1900-6

Visit Hitachi live at

Technical specs - EX 1900-6 Hitachi

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
192 t
Transport length
9.73 m
Transport width
6.66 m
Transport height
6.99 m
Bucket capacity
12 m³
Undercarriage
HD
Track width
800 mm
Max. Reach horizontal
15.25 m
Dredging depth
8.18 m
Tear-out force
719 kN
Bucket width
2.07 m
Model series
EX
Engine manuf.
Cummins
Engine type
QSKTA38CE
Engine power
810 kW
Displacement
37.8 l
Revolutions at max torque
1300 rpm

More technical details, like: bucket capacity min., bucket capacity max., boom, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Hitachi EX 1900-6 FAQ

When was the Hitachi EX 1900-6 manufactured?

The Hitachi EX 1900-6 was manufactured from 2007 to 2012.

How much does the Hitachi EX 1900-6 weigh?

The Hitachi EX 1900-6 weighs 192 tons.

What are the transport dimensions of the Hitachi EX 1900-6?

The Hitachi EX 1900-6 has a transport length of 9.73 meters, a transport width of 6.66 meters, and a transport height of 6.99 meters.

What are the undercarriage specifications of the Hitachi EX 1900-6?

The Hitachi EX 1900-6 has a heavy duty undercarriage with a track width of 800 mm.

What are the excavation performance specifications of the Hitachi EX 1900-6?

The Hitachi EX 1900-6 has a dredging depth of 8.18 meters and a maximum horizontal reach of 15.25 meters.

What is the tear-out force of the Hitachi EX 1900-6?

The Hitachi EX 1900-6 has a tear-out force of 719 kN.

What are the specifications of the primary work tool on the Hitachi EX 1900-6?

The primary work tool of the Hitachi EX 1900-6 has a bucket capacity of 12 cubic meters and a bucket width of 2.07 meters.

How much is a Hitachi EX 1900-6 Crawler excavator (2007u20132012) worth?

The residual value of the Hitachi EX 1900-6 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Hitachi EX 1900-6 overview

Hitachi EX 1900-6 features overview

Solution Giant

Each Hitachi generation listens to the needs of the work site and gives birth to an even-better new generation.


Larger Bucket Provides High Work Capacity

The large bucket has been shaped specifically to enhance scooping and loading operations, thereby contributing to efficient and high speed operating efficiency.


High Visibility Cab Height

Gives the operator a clear view, even when a large 190 U.S. ton class dump truck is being loaded. This high height and forward-sloping cab provides a view that boosts productivity.


Engine

Powerful Single Engine — Ready for the task.

Time-proven Cummins diesel engine produces a total of 810 kW (1 086 HP) for handling the big excavation jobs.


Efficient E-P Control — Adjusts power output to the work being performed.

Hitachi's computer-aided Engine-Pump Control (E-P Control) coaxes optimum efficiency from the engine and hydraulic pumps. This innovative system senses load demand and controls engine and pump output for maximum operating efficiency.


MIC Mining

The MIC Mining comprises the DLU (Data-logging unit) on the machine. The machine DLU continuously records performance of the engine and the hydraulic system. The record can be downloaded by PC and PDA.


Hydraulic and electronic system

Strategically Positioned Oil Coolers

An oil cooler is used for optimal cooling efficiency. They are positioned far from the engine radiator for even better cooling potential.


Upper Structure

Solid Cast Track Frame

The track frame is cast as a solid unit and includes a flange for improved reliability. This non-welded design is used exclusively on large Hitachi models.


Counterweight with Walkway

A walkway around the entire counterweight provides easy access to key rear areas. This means faster and safer inspection and maintenance.


Wide-Open Service Area

This area is conveniently located at the center of the body and provides access to the engine as well as the hydraulic and electrical systems.


Cab

Rugged Comfortable Cab

Fluid filled elastic mounts help absorb vibration to provide durability and a comfortable ride. The top guard, conforming to OPG level II (ISO), is provided on the cab.


Efficient Cab Layout

The ergonomic layout of the cab means the operator will do less stretching and reaching when operating the controls. This adds up to less operator fatigue and greater operating efficiency.


Air Suspension Seat

The operator seat cushion can automatically be adjusted according to the operator weight. This is convenient for a machine operated by two or more operators.


Adjustable Sliding Cockpit

The operator can adjust the position of the levers and the seat to custom fit his size and operating style.


Constant-Cab-Comfort Air Conditioner

Intelligent Multi-Display Monitor provides machine data and operating status at a glance. The operator can monitor machine conditions and operating status with a 10.5-inch color LCD. The controller provides instant fault diagnosis through all sensors, displaying warnings and countermeasures if failure arises.
