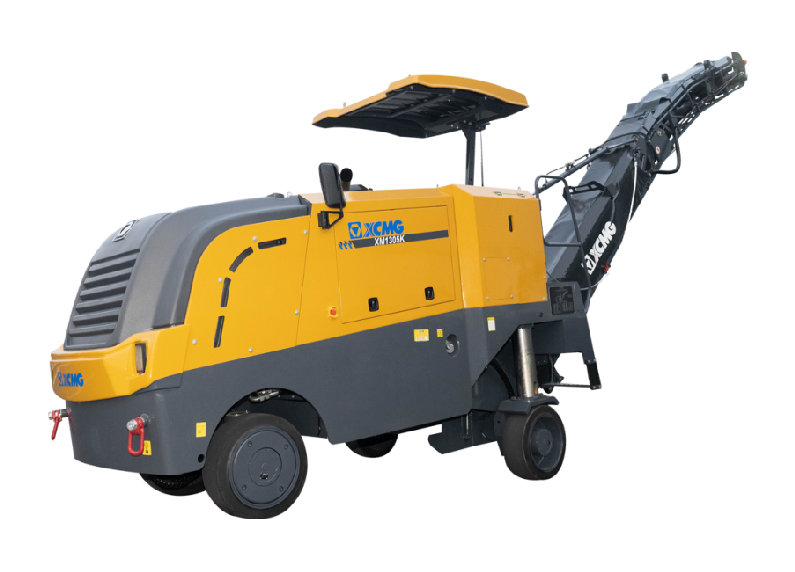

XM1305K XCMG XM1305K Specifications & Technical Data (2025—2026)
Visit XCMG live at
Technical specs - XM1305K XCMG
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 15.4 t
- Cutting width
- 1300 mm
- Cutting depth
- 300 mm
- Transport length
- 9.58 m
- Transport width
- 2.595 m
- Transport height
- 2.69 m
- Model series
- XM
- Engine manuf.
- Shangchai
- Engine type
- SC9DK240G3
- Engine power
- 177 kW
- Emission level
- EU III
More technical details, like: track width, standard tyres, turning radius outside, operating speed, travel speed, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.
Basic model with cutting tools
Special equipment
- Diesel particulate filter
-
No
- Cabin
-
No
- Front loading conveyor
-
No
- Infrared heater
-
No
- Aircondition
-
No
