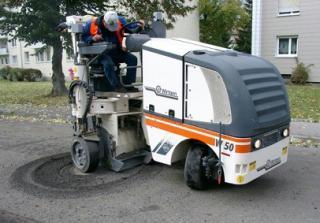

W 50 Wirtgen W 50 Specifications & Technical Data (2004—2012)
Visit Wirtgen live at
Technical specs - W 50 Wirtgen
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 6.56 t
- Standard tyres
- 559x203/559x254
- Cutting width
- 500 mm
- Cutting depth
- 160 mm
- Operating speed
- 38 m/min
- Travel speed
- 6 km/h
- Transport length
- 3.41 m
- Transport width
- 1.34 m
- Transport height
- 2.65 m
- Engine manuf.
- Deutz
- Engine type
- BF4M2011
- Engine power
- 60 kW
- Displacement
- 3.11 l
More technical details, like: track width, turning radius outside, model series, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.
Basic model with cutting tools
Special equipment
- Diesel particulate filter
-
No
- Cabin
-
No
- Front loading conveyor
-
No
- Infrared heater
-
No
- Aircondition
-
No
Download datasheets (PDF)
