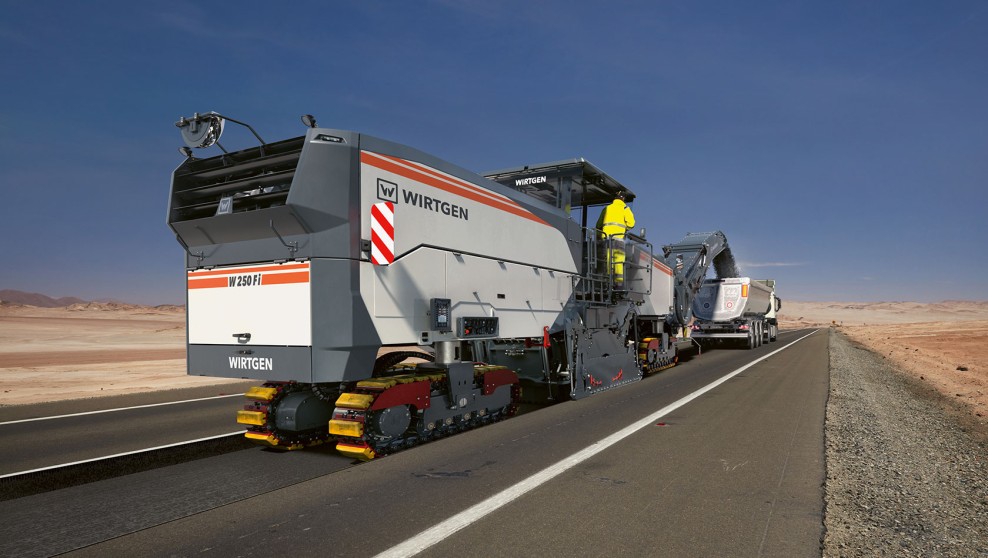

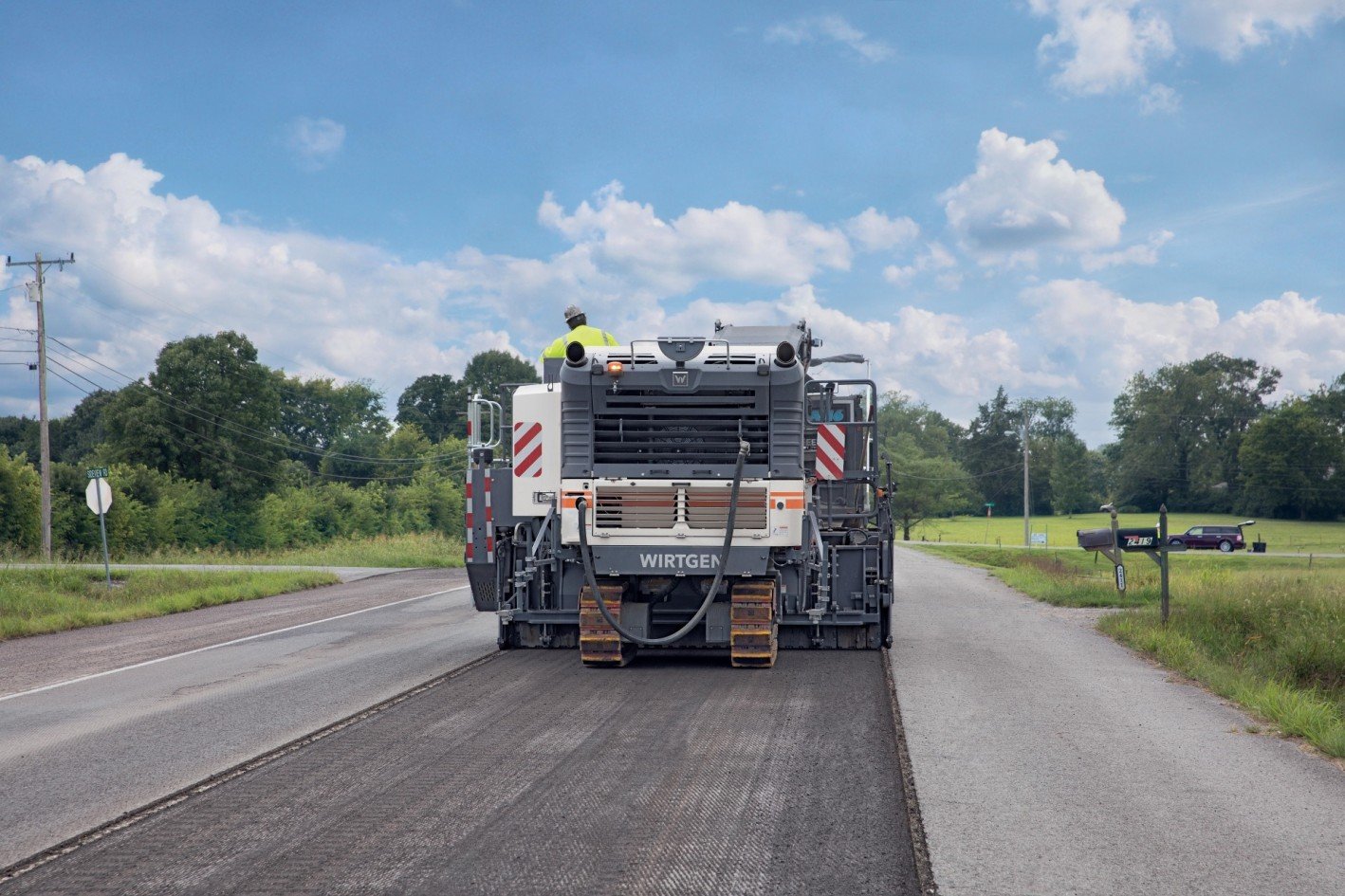

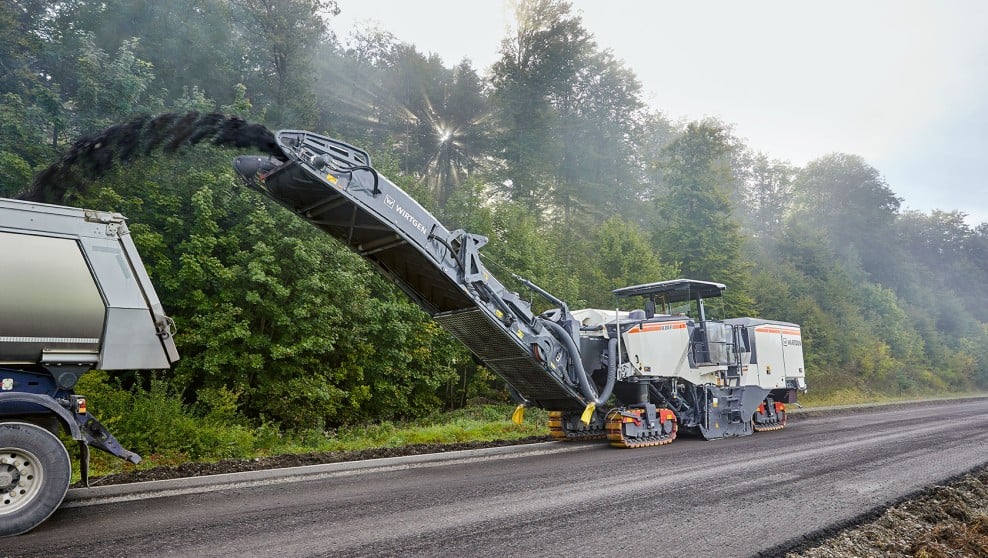

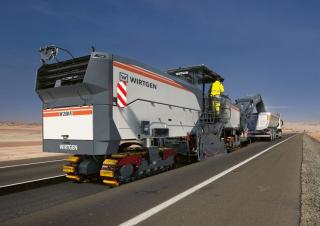

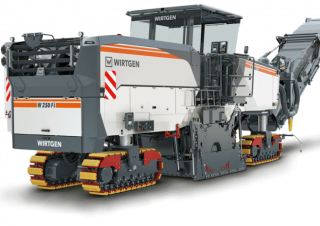

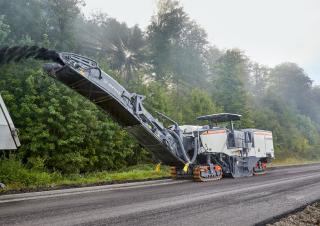

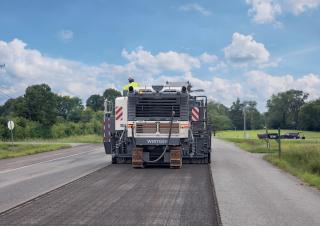

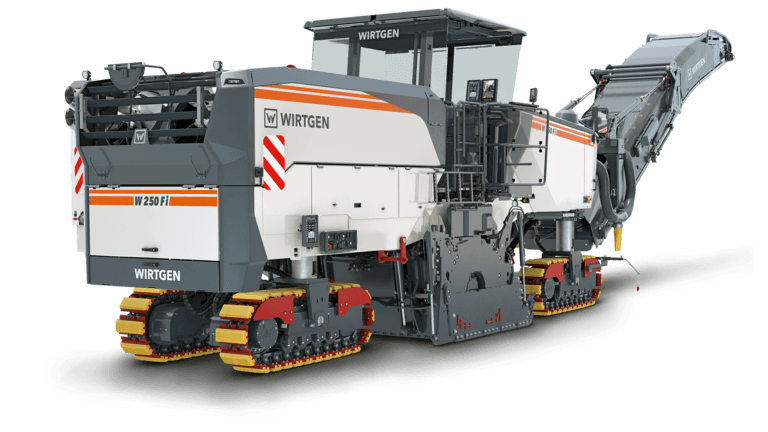

    Wirtgen W 250 Fi Specifications & Technical Data (2020-2023)

    Rate this machine now!

    Weight: 39.3t – Track width: 370mm – Cutting width: 2200mm – Cutting depth: 350mm – Operating speed: 88m/min – Travel speed : 5.3km/h

    Technical specs - W 250 Fi Wirtgen


    Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur.Contact our team with any change suggestion.

    • Weight 39.3 t
    • Track width 370 mm
    • Cutting width 2200 mm
    • Cutting depth 350 mm
    • Operating speed 88 m/min
    • Travel speed 5.3 km/h
    • Transport length 10.3 m
    • Transport width 2.84 m
    • Transport height 3 m
    • Engine manuf. Caterpillar
    • Engine type C18 ATAAC
    • Engine power 753 kW
    • Displacement 24 l
    • Emission level Euro V / US Tier 4f

    More technical details, like: standard tyres, turning radius outside, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

    Basic model with cutting tools

    Special equipment

    • Diesel particulate filter
    • Cabin
    • Front loading conveyor
    • Infrared heater
    • Aircondition
