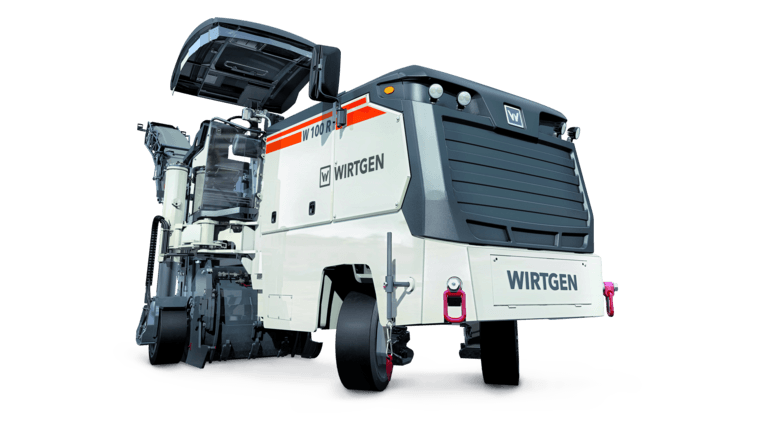

    Wirtgen W 100 Ri Specifications & Technical Data (2021-2023)

    Rate this machine now!

    Weight: 14.1t – Standard tyres: 620x230 / 620x255 – Cutting width: 1000mm – Cutting depth: 300mm – Operating speed: 33m/min – Travel speed : 7.5km/h

    Technical specs - W 100 Ri Wirtgen


    Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur.Contact our team with any change suggestion.

    • Weight 14.1 t
    • Standard tyres 620x230 / 620x255
    • Cutting width 1000 mm
    • Cutting depth 300 mm
    • Operating speed 33 m/min
    • Travel speed 7.5 km/h
    • Transport length 4.75 m
    • Transport width 2.29 m
    • Transport height 3.67 m
    • Engine manuf. Deutz
    • Engine type TCD6.1 L6
    • Engine power 160 kW
    • Displacement 6.057 l
    • Emission level Euro V / US Tier 4f

    More technical details, like: track width, turning radius outside, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

    Basic model with cutting tools

    Special equipment

    • Diesel particulate filter
    • Cabin
    • Front loading conveyor
    • Infrared heater
    • Aircondition
