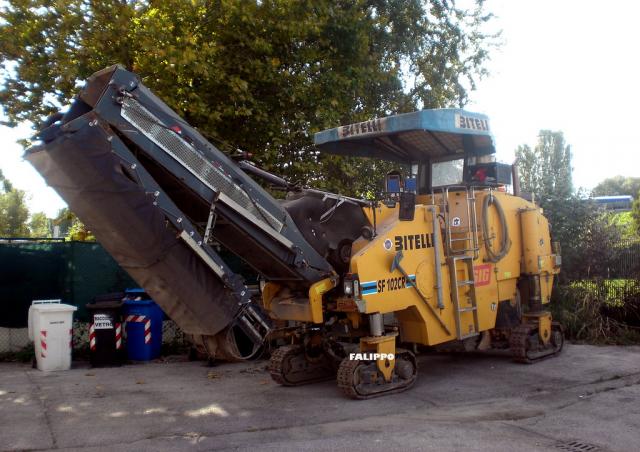

Bitelli SF 102 CR
- Weight:
- 17.3 t
- Track width:
- 225 mm
- Cutting width:
- 1000 mm
- Cutting depth:
- 305 mm
SF 102 CR Bitelli SF 102 CR Specifications & Technical Data (2002—2004)
-
Model rating
- 5,00 / 10
Technical specs - SF 102 CR Bitelli
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 17.3 t
- Track width
- 225 mm
- Cutting width
- 1000 mm
- Cutting depth
- 305 mm
- Operating speed
- 27 m/min
- Travel speed
- 3.7 km/h
- Transport length
- 5.17 m
- Transport width
- 2.06 m
- Transport height
- 3.06 m
- Model series
- SF
- Engine manuf.
- Caterpillar
- Engine type
- 3126 B ATAAC
- Engine power
- 168 kW
More technical details, like: standard tyres, turning radius outside, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.
Basic model with cutting tools
Special equipment
- Diesel particulate filter
-
No
- Cabin
-
No
- Front loading conveyor
-
Yes
- Infrared heater
-
No
- Aircondition
-
No
Download datasheets (PDF)
