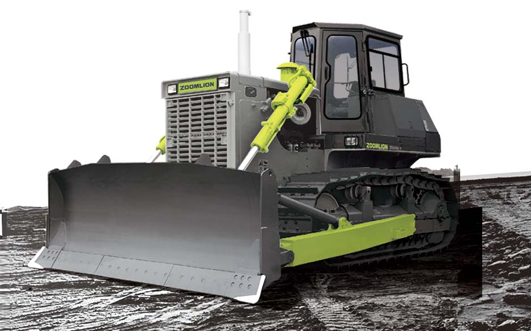

ZD220F-3 Zoomlion ZD220F-3 Specifications & Technical Data (2017—2023)
Technical specs - ZD220F-3 Zoomlion
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 26.44 t
- Transport length
- 5.89 m
- Transport width
- 3.72 m
- Transport height
- 3.52 m
- Blade type
- B
- Soil pressure
- 0.77 kg/cm²
- Track width
- 560 mm
- Travel speed
- 11.2 km/h
- Front blade width
- 3.72 m
- Model series
- ZD
- Engine manuf.
- Cummins
- Engine type
- NT855-C280(BC3)
- Engine power
- 175 kW
- Dimension lxwxh
- 1298x817x1367 mm
- Displacement
- 14 l
- Revolutions at max torque
- 1250 rpm
- Max. torque
- 1078 Nm
- No. of cylinders
- 6
- Cylinder bore x stroke
- 140x152 mm
- Emission level
- Euro I
More technical details, like: reverse travel speed, transmission type, max. drawbar pull are available in the full technical specs.
Basic model with ROPS cabin and corresponding blade
Special equipment
- Diesel particulate filter
-
No
- Rear ripper
-
No
- Tilt device
-
No
- Aircondition
-
No
Download datasheets (PDF)
