Lectura specs Construction machinery Bulldozers Bulldozers YTO YTO YD230 specifications

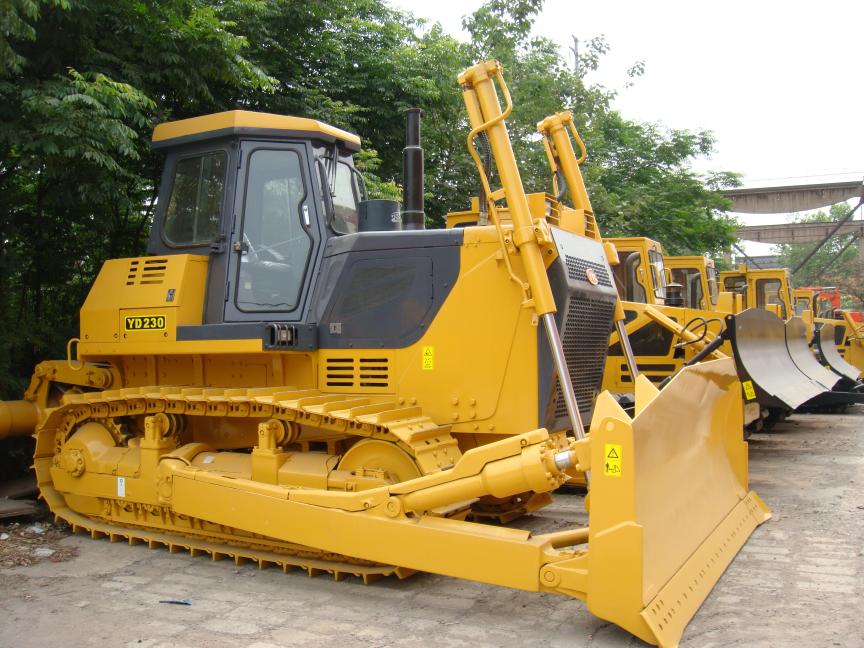

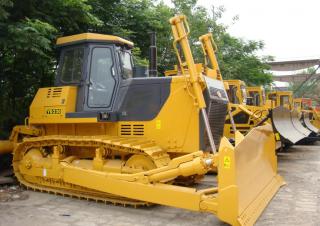

Basic model with ROPS cabin and corresponding blade

YD230 YTO - Technical specs

Weight 24.2 t
Transport length 6.83 m
Transport width 3.725 m
Transport height 3.522 m
Soil pressure 0.77 kg/cm²
Track width 560 mm
Travel speed 11 km/h
Travel speed reverse 3.725 km/h
Engine manuf. Cummins
Engine type NTAA855-C280S20
Engine power 179 kW
Engine power 240 HP
Emission level Tier 2, Stage II
Blade type ###
Front blade width ###
Transmission type ###
max. Drawbar Pull ###
Dimension lxwxh ###
Displacement ###
Revolutions at max torque ###
Max. torque ###
No. of cylinders ###
Cylinder bore x stroke ###
Weight ###

YD230 YTO - Special equipment

  • Diesel particulate filter
  • Rear ripper
  • Tilt device
  • Aircondition
