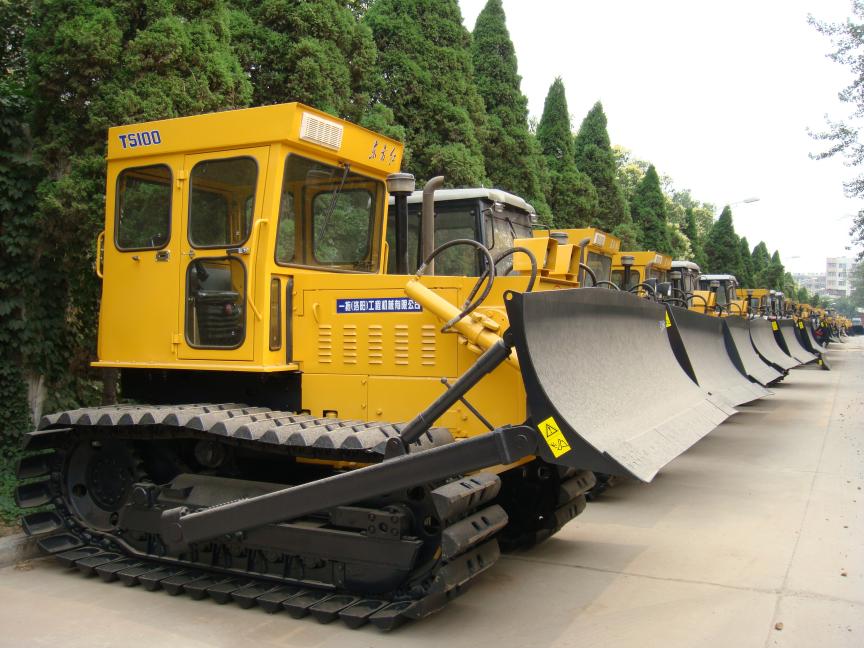

TS100 YTO TS100 Specifications & Technical Data (2017—2020)
Technical specs - TS100 YTO
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 11.36 t
- Transport length
- 4.19 m
- Transport width
- 3.2 m
- Transport height
- 3.02 m
- Soil pressure
- 0.37 kg/cm²
- Track width
- 720 mm
- Travel speed
- 10.3 km/h
- Reverse travel speed
- 3.2 km/h
- Model series
- TS
- Engine manuf.
- British Ricardo
- Engine type
- LR6A3-23
- Engine power
- 81 kW
- Max. torque
- 400 Nm
- Emission level
- Tier 2. Stage II
More technical details, like: blade type, front blade width, transmission type, max. drawbar pull, dimension lxwxh, displacement, revolutions at max torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.
Basic model with ROPS cabin and corresponding blade
Special equipment
- Diesel particulate filter
-
No
- Rear ripper
-
No
- Tilt device
-
No
- Aircondition
-
No
