SD60-C5 Shantui SD60-C5 Specifications & Technical Data (2020—2026)

Weight: 70.63t – Transport length: 10.39m – Transport width: 4.69m – Transport height: 4.37m – Blade type: SU – Travel speed: 11.8km/h

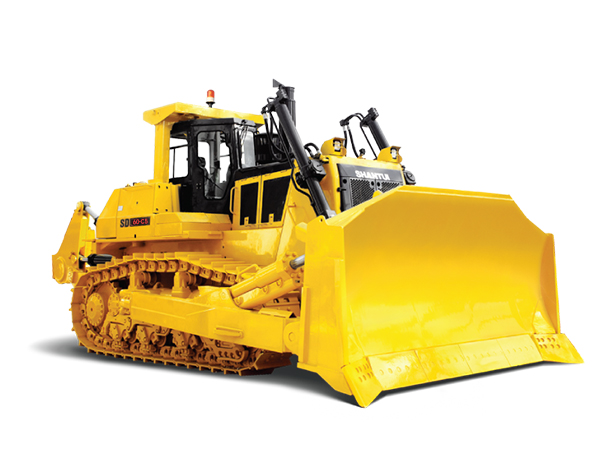

Bulldozers Shantui SD60-C5

Technical specs - SD60-C5 Shantui

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
70.63 t
Transport length
10.39 m
Transport width
4.69 m
Transport height
4.37 m
Blade type
SU
Travel speed
11.8 km/h
Reverse travel speed
15.8 km/h
Front blade width
4.69 m
Model series
LARGE
Engine manuf.
Cummins
Engine type
QSK19
Engine power
450 kW
Displacement
19 l
Revolutions at max torque
1300 rpm
Max. torque
3019 Nm
Cylinder bore x stroke
159x159 mm

More technical details, like: soil pressure, track width, transmission type, max. drawbar pull, dimension lxwxh, no. of cylinders, emission level are available in the full technical specs.

Basic model with ROPS cabin and corresponding blade

Special equipment

Diesel particulate filter
No
Rear ripper
No
Tilt device
No
Aircondition
No

Download datasheets (PDF)

Shantui SD60-C5 FAQ

When was the Shantui SD60-C5 manufactured?

The Shantui SD60-C5 was first produced in 2020.

How much does the Shantui SD60-C5 weigh?

The Shantui SD60-C5 weighs 70 tons.

What are the transport dimensions of the Shantui SD60-C5 bulldozer?

The Shantui SD60-C5 has a transport length of 10.39 meters, a transport width of 4.69 meters, and a transport height of 4.37 meters.

How much is a Shantui SD60-C5 Bulldozer (2020u20132025) worth?

The residual value of the Shantui SD60-C5 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
