SD32R Shantui SD32R Specifications & Technical Data (2025—2026)

Weight: 35.23t – Transport length: 6.276m – Transport width: 2.7m – Transport height: 3.76m – Track width: 560mm – Travel speed: 11.5km/h

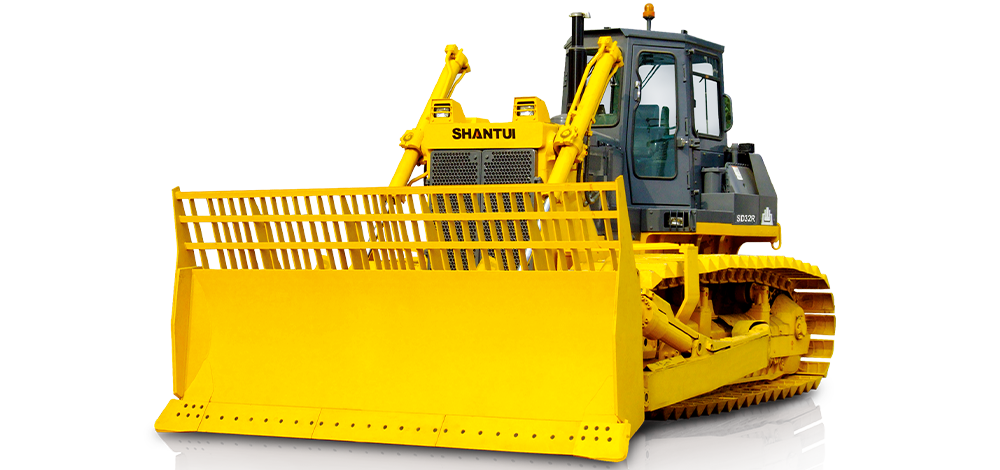

Bulldozers Shantui SD32R

Technical specs - SD32R Shantui

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
35.23 t
Transport length
6.276 m
Transport width
2.7 m
Transport height
3.76 m
Track width
560 mm
Travel speed
11.5 km/h
Reverse travel speed
13.5 km/h
Front blade width
4.502 m
Model series
MEDIUM
Engine manuf.
Cummins
Engine type
QSNT-C345S31
Engine power
257 kW
Displacement
14.01 l
Revolutions at max torque
1400 rpm
Max. torque
1509 Nm
No. of cylinders
6
Cylinder bore x stroke
140x152 mm
Emission level
China III / Stage II

More technical details, like: blade type, soil pressure, transmission type, max. drawbar pull, dimension lxwxh are available in the full technical specs.

Basic model with ROPS cabin and corresponding blade

Special equipment

Diesel particulate filter
No
Rear ripper
No
Tilt device
No
Aircondition
No
