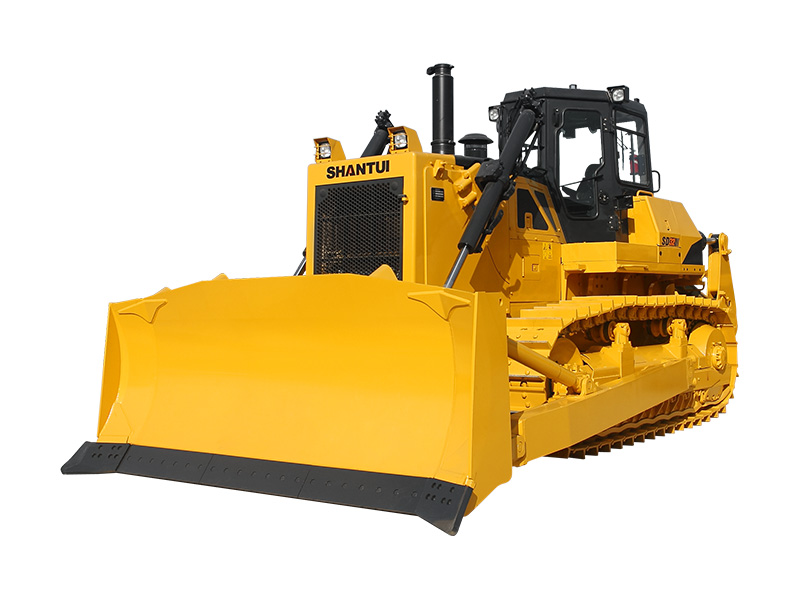

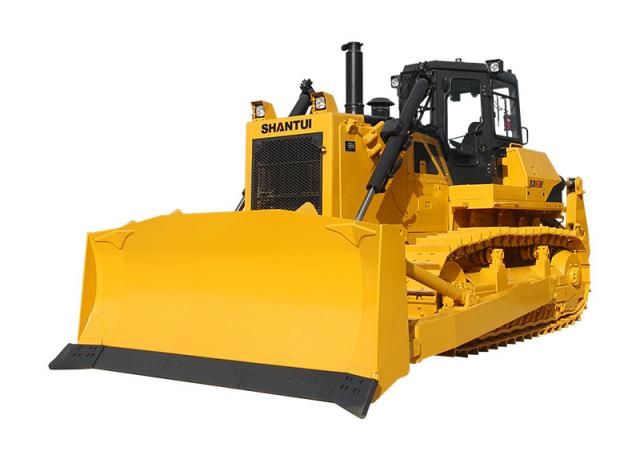

SD32plus Shantui SD32plus Specifications & Technical Data (2018—2025)
Technical specs - SD32plus Shantui
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 37.2 t
- Transport length
- 8.56 m
- Transport width
- 4.13 m
- Transport height
- 3.64 m
- Blade type
- B
- Soil pressure
- 1.07 kg/cm²
- Model series
- LARGE
- Engine manuf.
- Cummins
- Engine type
- NTA855-C360S10
- Engine power
- 235 kW
- Displacement
- 14.01 l
- Max. torque
- 1440 Nm
- No. of cylinders
- 6
- Cylinder bore x stroke
- 139.7x152.4 mm
More technical details, like: track width, travel speed, reverse travel speed, front blade width, transmission type, max. drawbar pull, dimension lxwxh, revolutions at max torque, emission level are available in the full technical specs.
Basic model with ROPS cabin and corresponding blade
Special equipment
- Diesel particulate filter
-
No
- Rear ripper
-
No
- Tilt device
-
No
- Aircondition
-
No
