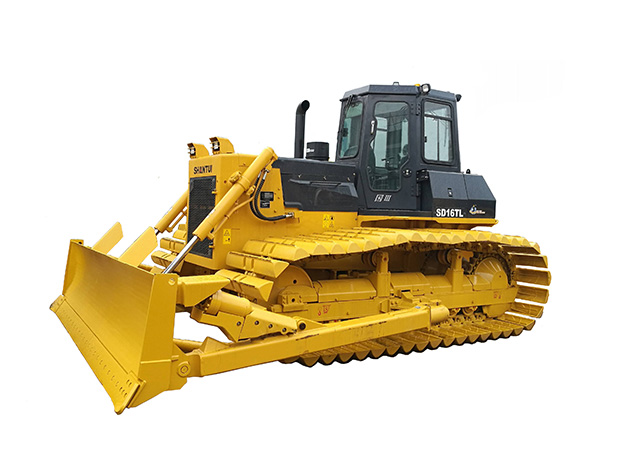

SD16TL PLUS Shantui SD16TL PLUS Specifications & Technical Data (2018—2020)
Technical specs - SD16TL PLUS Shantui
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Transport length
- 5.262 m
- Transport width
- 4.15 m
- Transport height
- 3.074 m
- Blade type
- B
- Soil pressure
- 2.75 kg/cm²
- Track width
- 400 mm
- Front blade width
- 4.15 m
- Model series
- MEDIUM
- Engine manuf.
- Weichai
- Engine type
- WD10
- Engine power
- 120 kW
- Revolutions at max torque
- 1850 rpm
More technical details, like: weight, travel speed, reverse travel speed, transmission type, max. drawbar pull, dimension lxwxh, displacement, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.
Basic model with ROPS cabin and corresponding blade
Special equipment
- Diesel particulate filter
-
No
- Rear ripper
-
No
- Tilt device
-
No
- Aircondition
-
No
