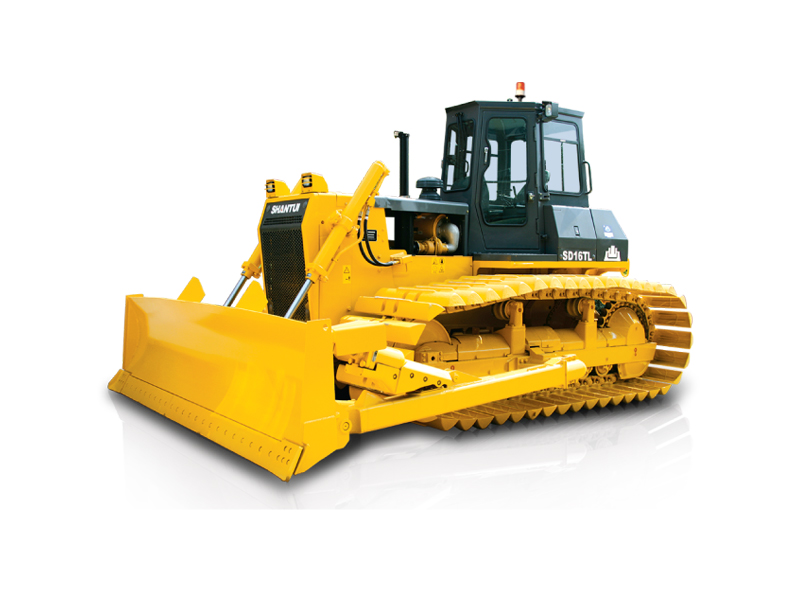

Shantui SD16T Specifications & Technical Data (2018-2020)

Technical specs - SD16T Shantui

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 17 t

Transport length: 5.14 m

Transport width: 3.388 m

Transport height: 3.032 m

Blade type: B

Soil pressure: 6.83 kg/cm²

Track width: 510 mm

Travel speed: 11 km/h

Front blade width: 3.388 m

Model series: MEDIUM

Engine manuf.: Weichai

Engine type: WD10G178E25

Engine power: 120 kW

Revolutions at max torque: 1850 rpm

More technical details, like: reverse travel speed, transmission type, max. drawbar pull, dimension lxwxh, displacement, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin and corresponding blade

Special equipment

Diesel particulate filter: No
Rear ripper: No
Tilt device: No
Aircondition: No

Shantui SD16T FAQ

When was the Shantui SD16T manufactured?

The Shantui SD16T was manufactured from 2018 to 2020.

How much does the Shantui SD16T bulldozer weigh?

The Shantui SD16T bulldozer weighs 17 tons.

What are the transport dimensions of the Shantui SD16T bulldozer?

The Shantui SD16T bulldozer has a transport length of 5.14 meters, a transport width of 3.39 meters, and a transport height of 3.03 meters.

What is the travel speed of the Shantui SD16T bulldozer?

The Shantui SD16T bulldozer has a travel speed of 11 km/h.

What are the undercarriage specifications of the Shantui SD16T bulldozer?

The Shantui SD16T bulldozer has a track width of 510 mm and a soil pressure of 6.83 kg/cmu00b2.

What are the specifications of the primary work tool on the Shantui SD16T?

The Shantui SD16T is equipped with a front blade that has a width of 3.39 meters.

How much is a Shantui SD16T Bulldozer (2018u20132020) worth?

The residual value of the Shantui SD16T depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
