SD13S Shantui SD13S Specifications & Technical Data (2025—2026)

Weight: 14.9t – Transport length: 4.492m – Transport width: 2.58m – Transport height: 3.51m – Blade type: B – Track width: 460mm

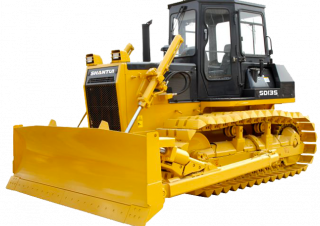

Bulldozers Shantui SD13S

Technical specs - SD13S Shantui

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
14.9 t
Transport length
4.492 m
Transport width
2.58 m
Transport height
3.51 m
Blade type
B
Track width
460 mm
Travel speed
9.8 km/h
Reverse travel speed
11.9 km/h
Front blade width
3.51 m
Model series
SMALL
Engine manuf.
Shangchai
Engine type
SC8D143G2B1
Engine power
105 kW
Displacement
8.27 l
Revolutions at max torque
1300 rpm
Max. torque
674 Nm
No. of cylinders
6
Cylinder bore x stroke
114x135 mm
Emission level
China II

More technical details, like: soil pressure, transmission type, max. drawbar pull, dimension lxwxh are available in the full technical specs.

Basic model with ROPS cabin and corresponding blade

Special equipment

Diesel particulate filter
No
Rear ripper
No
Tilt device
No
Aircondition
No

Download datasheets (PDF)
