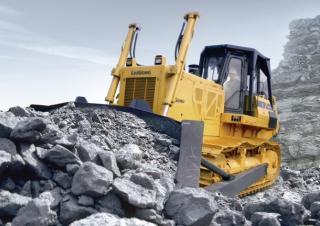

    Liugong B320 Specifications & Technical Data (2014-2022)

    Rate this machine now!

    Weight: 38.2t – Transport length: 8.995m – Transport width: 2.7m – Transport height: 3.59m – Track width: 560mm – Travel speed : 11.8km/h

    Technical specs - B320 Liugong

    Specification

    Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur.Contact our team with any change suggestion.

    • Weight 38.2 t
    • Transport length 8.995 m
    • Transport width 2.7 m
    • Transport height 3.59 m
    • Track width 560 mm
    • Travel speed 11.8 km/h
    • Reverse travel speed 13.7 km/h
    • Front blade width 4.13 m
    • Engine manuf. Chongqing Cummins
    • Engine type NT855C360S20
    • Engine power 235 kW
    • Displacement 14 l
    • Revolutions at max torque 2000 rpm
    • Max. torque 1509/2000 Nm
    • No. of cylinders 6
    • Emission level Tier 2/EU II
    • Blade type ###
    • Soil pressure ###
    • Transmission type ###
    • max. Drawbar Pull ###
    • Dimension lxwxh ###
    • Cylinder bore x stroke ###

    Basic model with ROPS cabin and corresponding blade

    Special equipment

    • Diesel particulate filter
    • Rear ripper
    • Tilt device
    • Aircondition
