B230 Liugong B230 Specifications & Technical Data (2021—2026)

Weight: 24.54t – Transport length: 5.5m – Transport width: 2.56m – Transport height: 3.38m – Track width: 560mm – Travel speed: 12km/h

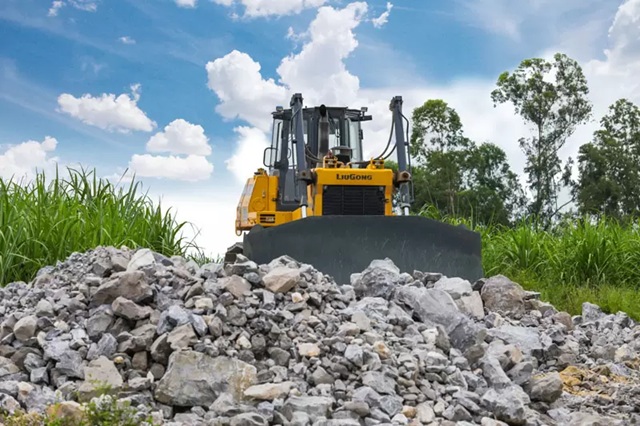

Bulldozers Liugong B230

Visit Liugong live at

Technical specs - B230 Liugong

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
24.54 t
Transport length
5.5 m
Transport width
2.56 m
Transport height
3.38 m
Track width
560 mm
Travel speed
12 km/h
Reverse travel speed
13.8 km/h
Front blade width
3.725 m
Model series
B
Engine manuf.
Chongqing Cummins
Engine type
NT855C280S10
Engine power
169 kW
Displacement
14 l
Revolutions at max torque
1400 rpm
Max. torque
1050 Nm
No. of cylinders
6
Emission level
Tier 1/Stage I

More technical details, like: blade type, soil pressure, transmission type, max. drawbar pull, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin and corresponding blade

Special equipment

Diesel particulate filter
No
Rear ripper
No
Tilt device
No
Aircondition
No

Download datasheets (PDF)
