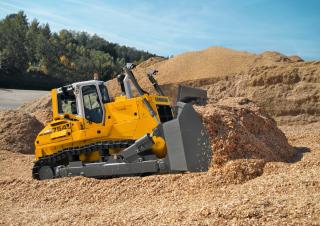

Liebherr PR 754 Litronic Specifications & Technical Data (2015-2024)

Technical specs - PR 754 Litronic Liebherr

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 34.9 t

Transport length: 4.87 m

Transport width: 3.14 m

Transport height: 3.63 m

Blade type: SU

Soil pressure: 0.98 kg/cm²

Track width: 560 mm

Travel speed: 11 km/h

Front blade width: 4.03 m

Model series: PR

Engine manuf.: Liebherr

Engine type: D946 LA6

Engine power: 250 kW

Displacement: 12 l

Revolutions at max torque: 1600 rpm

No. of cylinders: 6

Emission level: IV

More technical details, like: reverse travel speed, transmission type, max. drawbar pull, dimension lxwxh, max. torque, cylinder bore x stroke, undercarriage type, undercarriage system, cab - type, rops, fops, telematics available...

More technical details, like: reverse travel speed, transmission type, max. drawbar pull, dimension lxwxh, max. torque, cylinder bore x stroke, undercarriage type, undercarriage system, cab - type, rops, fops, telematics available, platform, grade control available, engine manufacturer, engine model, emission rating, aspiration, rated speed, engine output - net, transmission type, speed mode - 1, carrier rollers, track rollers, raised sprocket, shoe - width, shoe - type, number of shoes, service brake type, height - max, height - top of rops, ground clearance, width - over tracks, track length - on ground, length - no blade, blade, blade - width, blade - height, blade - dig depth, blade - lift clearance, blade - tilt, steering - differential, steering - clutches and brakes, fuel tank, blade - capacity, speed - forward maximum, speed - reverse maximum, ground bearing pressure, drawbar pull - maximum, implement pump - flow, implement pump - pressure, operating weight are available in the full technical specs.

Basic model with ROPS cabin and corresponding blade

Special equipment

Diesel particulate filter: No
Rear ripper: No
Tilt device: Yes
Aircondition: Yes

Download datasheets (PDF)

Liebherr PR 754 Litronic FAQ

When was the Liebherr PR 754 Litronic manufactured?

The Liebherr PR 754 Litronic was first produced in 2015.

How much does the Liebherr PR 754 Litronic bulldozer weigh?

The Liebherr PR 754 Litronic bulldozer weighs 34.9 tons.

What are the transport dimensions of the Liebherr PR 754 Litronic bulldozer?

The Liebherr PR 754 Litronic has a transport length of 4.87 meters, a transport width of 3.14 meters, and a transport height of 3.63 meters.

What is the travel speed of the Liebherr PR 754 Litronic bulldozer?

The Liebherr PR 754 Litronic bulldozer has a travel speed of 11 km/h.

What are the undercarriage specifications of the Liebherr PR 754 Litronic bulldozer?

The Liebherr PR 754 Litronic bulldozer has a track width of 560 mm and a soil pressure of 0.98 kg/cmu00b2.

What are the specifications of the primary work tool on the Liebherr PR 754 Litronic bulldozer?

The Liebherr PR 754 Litronic bulldozer is equipped with a semi-U-blade that has a front blade width of 4.03 meters.

How much is a Liebherr PR 754 Litronic Bulldozer (2015u20132025) worth?

The residual value of the Liebherr PR 754 Litronic depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
