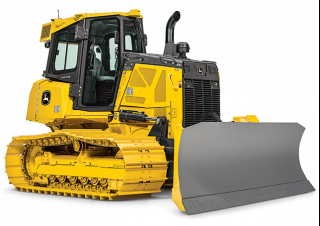

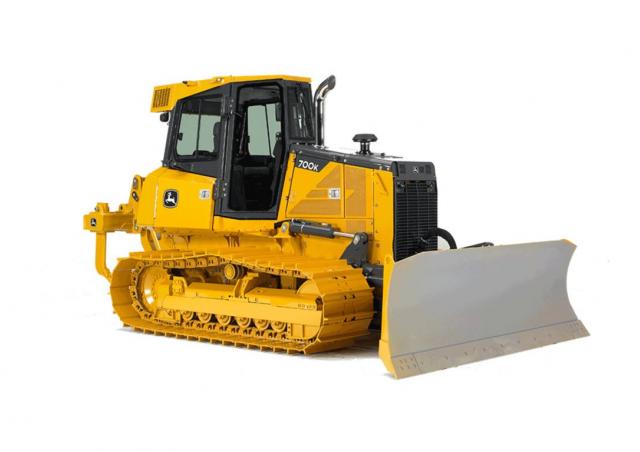

    John Deere Construction 700K XLT Specifications & Technical Data (2017-2021)

    Rate this machine now!

    Weight: 13.73t – Transport length: 4.81m – Transport width: 2.91m – Transport height: 2.94m – Blade type: S – Soil pressure: 0.47kg/cm²

    Technical specs - 700K XLT John Deere Construction

    Specification

    Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur.Contact our team with any change suggestion.

    • Weight 13.73 t
    • Transport length 4.81 m
    • Transport width 2.91 m
    • Transport height 2.94 m
    • Blade type S
    • Soil pressure 0.47 kg/cm²
    • Track width 560 mm
    • Travel speed 8.9 km/h
    • Reverse travel speed 8.9 km/h
    • Front blade width 3.2 m
    • Transmission type HY
    • max. Drawbar Pull 20.39 t
    • Engine manuf. John Deere
    • Engine type PowerTech PVS 6068
    • Engine power 97 kW
    • Displacement 6.8 l
    • Revolutions at max torque 1800 rpm
    • Max. torque 559/1500 Nm
    • No. of cylinders 6
    • Emission level Tier 4f/EU IV
    • Dimension lxwxh ###
    • Cylinder bore x stroke ###

    Basic model with ROPS cabin and corresponding blade

    Special equipment

    • Diesel particulate filter
    • Rear ripper
    • Tilt device
    • Aircondition
