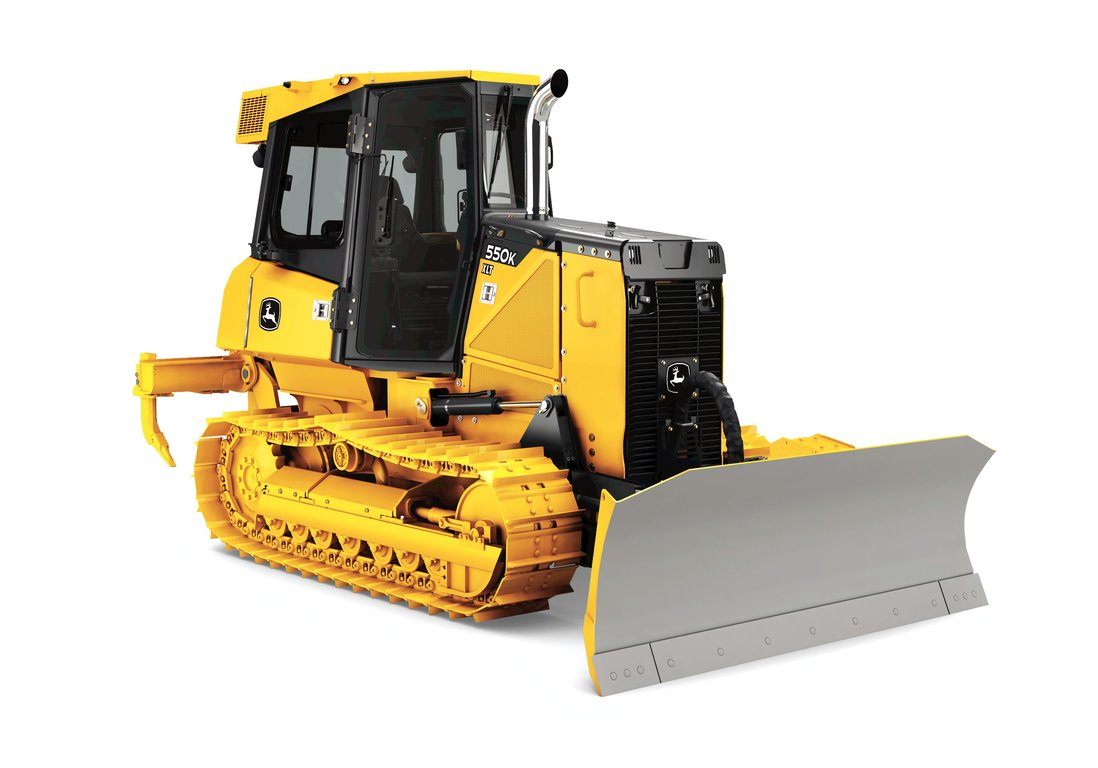

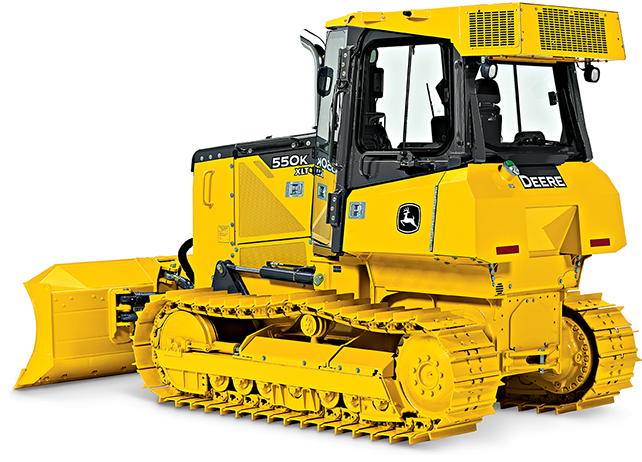

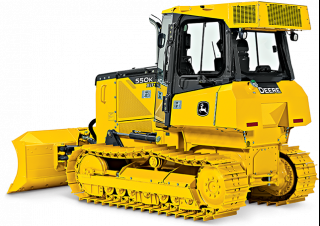

    John Deere Construction 550K Specifications & Technical Data (2017-2022)

    Rate this machine now!

    Weight: 8.98t – Transport length: 4.02m – Transport width: 2.7m – Transport height: 2.8m – Blade type: S – Soil pressure: 0.45kg/cm²

    Technical specs - 550K John Deere Construction

    Specification

    Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur.Contact our team with any change suggestion.

    • Weight 8.98 t
    • Transport length 4.02 m
    • Transport width 2.7 m
    • Transport height 2.8 m
    • Blade type S
    • Soil pressure 0.45 kg/cm²
    • Track width 457 mm
    • Travel speed 8 km/h
    • Reverse travel speed 8 km/h
    • Front blade width 2.67 m
    • Transmission type HY
    • max. Drawbar Pull 13.66 t
    • Engine manuf. John Deere
    • Engine type PowerTech PWS 4045
    • Engine power 69 kW
    • Displacement 4.5 l
    • Revolutions at max torque 2200 rpm
    • Max. torque 420/1400 Nm
    • No. of cylinders 4
    • Emission level Tier 4f/EU IV
    • Dimension lxwxh ###
    • Cylinder bore x stroke ###

    Basic model with ROPS cabin and corresponding blade

    Special equipment

    • Diesel particulate filter
    • Rear ripper
    • Tilt device
    • Aircondition
