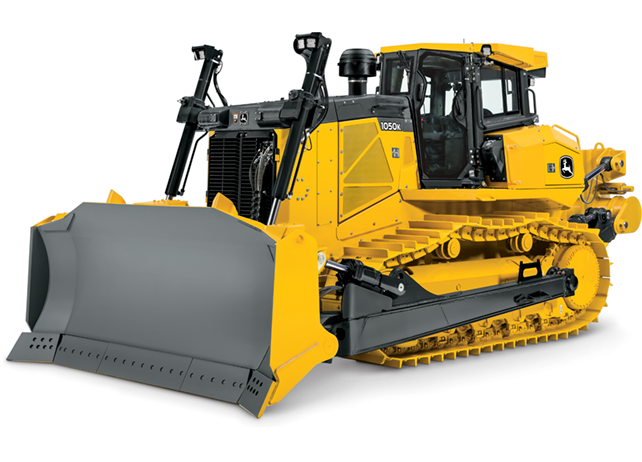

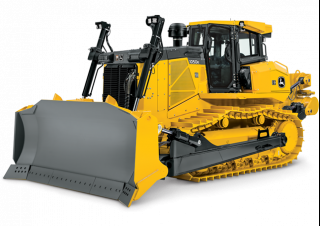

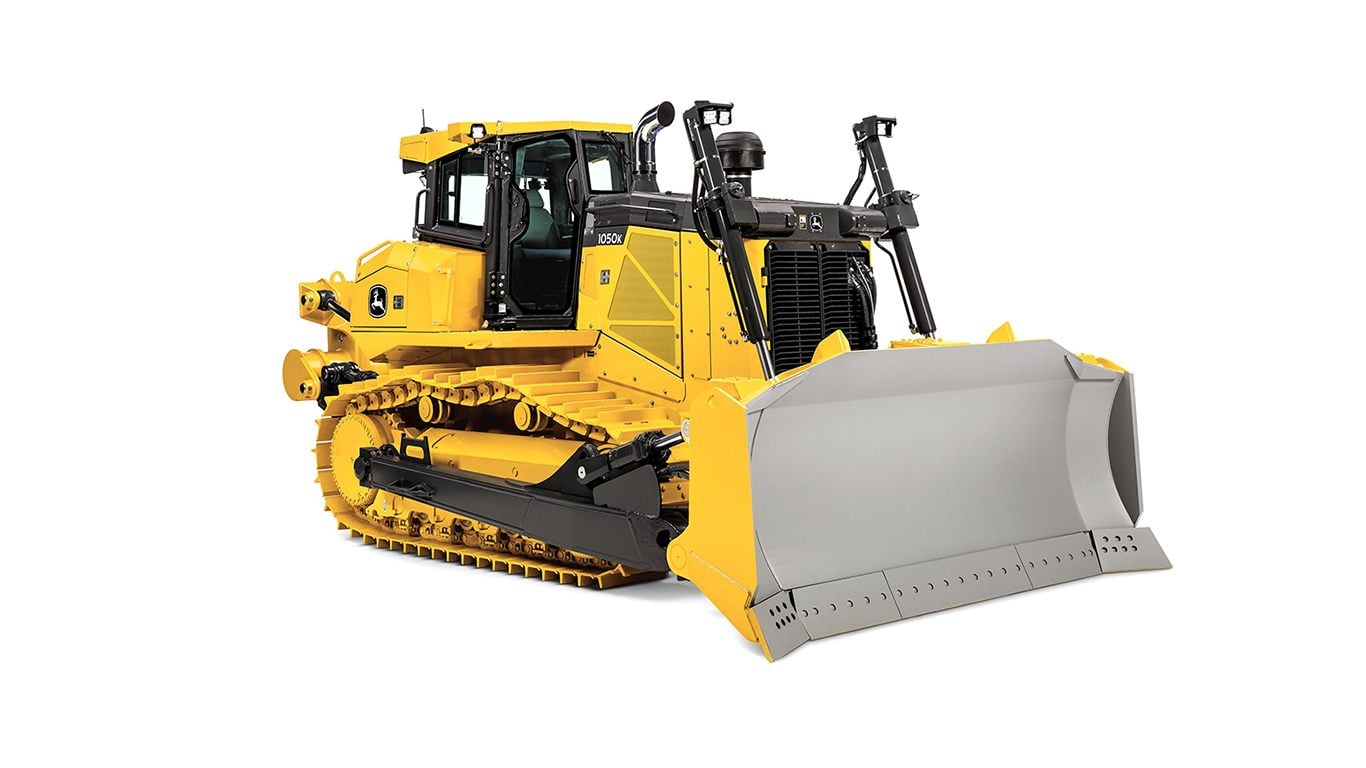

1050K John Deere Construction 1050K Specifications & Technical Data (2015—2019)
Technical specs - 1050K John Deere Construction
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 42.8 t
- Transport length
- 6.678 m
- Transport width
- 3.964 m
- Transport height
- 3.476 m
- Blade type
- SU
- Soil pressure
- 1.03 kg/cm²
- Track width
- 610 mm
- Travel speed
- 11 km/h
- Reverse travel speed
- 11 km/h
- Front blade width
- 3.96 m
- Transmission type
- HY
- max. Drawbar Pull
- 66.28 t
- Model series
- K
- Engine manuf.
- John Deere
- Engine type
- PowerTech PSS 6135
- Engine power
- 261 kW
- Displacement
- 13.5 l
- Revolutions at max torque
- 1800 rpm
- Max. torque
- 1576/1300 Nm
- No. of cylinders
- 6
- Emission level
- Tier2/EU II
More technical details, like: dimension lxwxh, cylinder bore x stroke are available in the full technical specs.
Basic model with ROPS cabin and corresponding blade
Special equipment
- Diesel particulate filter
-
No
- Rear ripper
-
No
- Tilt device
-
No
- Aircondition
-
Yes
