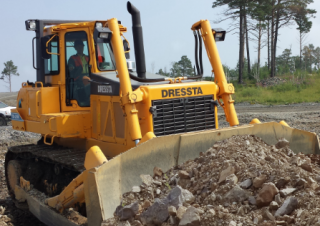

Dressta TD 25 R Specifications & Technical Data (2014-2015)

Technical specs - TD 25 R Dressta

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 36.2 t

Transport length: 5.19 m

Transport width: 2.7 m

Transport height: 3.93 m

Blade type: U/SU/TS

Track width: 560 mm

Travel speed: 12.2 km/h

Front blade width: 4.05 m

Model series: R

Engine manuf.: Cummins

Engine type: QSX15

Engine power: 246 kW

Displacement: 15 l

Revolutions at max torque: 1800 rpm

More technical details, like: soil pressure, reverse travel speed, transmission type, max. drawbar pull, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level, undercarriage type, cab - type, rops...

More technical details, like: soil pressure, reverse travel speed, transmission type, max. drawbar pull, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level, undercarriage type, cab - type, rops, fops, telematics available, grade control available, engine manufacturer, engine model, emission rating, aspiration, rated speed, engine output - net, engine output - gross, rated speed - torque, torque, transmission type, carrier rollers, track rollers, raised sprocket, shoe - pitch, shoe - width, shoe - type, ground contact area, number of shoes, height - max, height - top of rops, ground clearance, width - over tracks, track length - on ground, length - no blade, blade, blade - width, blade - height, blade - dig depth, blade - lift clearance, blade - tilt, steering - differential, steering - clutches and brakes, fuel tank, blade - capacity, speed - forward maximum, speed - reverse maximum, ground bearing pressure, drawbar pull - maximum, implement pump - flow, implement pump - pressure, operating weight are available in the full technical specs.

Basic model with ROPS cabin and corresponding blade

Special equipment

Diesel particulate filter: Yes
Rear ripper: No
Tilt device: Yes
Aircondition: Yes

Download datasheets (PDF)

Dressta TD 25 R FAQ

When was the Dressta TD 25 R manufactured?

The Dressta TD 25 R was manufactured from 2014 to 2015.

How much does the Dressta TD 25 R weigh?

The Dressta TD 25 R weighs 36.2 tons.

What are the transport dimensions of the Dressta TD 25 R bulldozer?

The Dressta TD 25 R has a transport length of 5.19 meters, a transport width of 2.7 meters, and a transport height of 3.93 meters.

What is the travel speed of the Dressta TD 25 R bulldozer?

The Dressta TD 25 R bulldozer has a travel speed of 12.2 km/h.

What is the track width of the Dressta TD 25 R bulldozer's undercarriage?

The Dressta TD 25 R bulldozer has a track width of 560 mm.

What are the specifications of the primary work blade on the Dressta TD 25 R bulldozer?

The Dressta TD 25 R bulldozer features a semi-U-blade, a hydraulically pivotable angling blade, and a U-blade, with a front blade width of 4.05 meters.

How much is a Dressta TD 25 R Bulldozer (2014u20132015) worth?

The residual value of the Dressta TD 25 R depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
