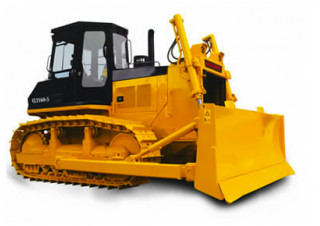

Changlin CLT160-5 Specifications & Technical Data (2017-2026)

Technical specs - CLT160-5 Changlin

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 17 t

Transport length: 5.14 m

Transport width: 3.39 m

Transport height: 3.1 m

Track width: 510 mm

Model series: CLT

Engine manuf.: Weichai

Engine type: WD10G 178E25

Engine power: 131 kW

More technical details, like: blade type, soil pressure, travel speed, reverse travel speed, front blade width, transmission type, max. drawbar pull, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders...

More technical details, like: blade type, soil pressure, travel speed, reverse travel speed, front blade width, transmission type, max. drawbar pull, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin and corresponding blade

Special equipment

Diesel particulate filter: No
Rear ripper: No
Tilt device: No
Aircondition: No

Changlin CLT160-5 FAQ

When was the Changlin CLT160-5 manufactured?

The Changlin CLT160-5 was first produced in 2017.

How much does the Changlin CLT160-5 bulldozer weigh?

The Changlin CLT160-5 bulldozer weighs 17 tons.

What are the transport dimensions of the Changlin CLT160-5 bulldozer?

The Changlin CLT160-5 bulldozer has a transport length of 5.14 meters, a transport width of 3.39 meters, and a transport height of 3.1 meters.

What is the track width of the Changlin CLT160-5 bulldozer?

The Changlin CLT160-5 bulldozer has a track width of 510 mm.

How much is a Changlin CLT160-5 Bulldozer (2017u20132025) worth?

The residual value of the Changlin CLT160-5 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Machine inspection

Ask for inspection of your Changlin CLT160-5 from experts

Mevas is an international operating inspection service for used heavy machinery. Construction machinery inspectors are available in more than 20 countries.

Use this service to minimise the risk when buying used equipment. An inspection by Mevas costs less than repairing a defective hydraulic cylinder.

Enquire machine inspection

Provided by:

Buy & Rent

Compare Changlin CLT160-5 with similar Bulldozers

Changlin CLT160-5

Weight:: 17 t

Transport length:: 5.14 m

Transport width:: 3.39 m

Transport height:: 3.1 m

Zoomlion ZD160-3

Weight:: 16.5 t

Transport length:: 5.05 m

Transport width:: 3.416 m

Transport height:: 3.2 m

Liugong B160

Weight:: 17 t

Transport length:: 6.51 m

Transport width:: 2.39 m

Transport height:: 3.2 m

New Holland D 150 LGP

Weight:: 16.8 t

Transport length:: 5.31 m

Transport width:: 4 m

Transport height:: 3.08 m

SEM 816D

Weight:: 16.9 t

Transport length:: 5.15 m

Transport width:: 3.18 m

Transport height:: 3.08 m
