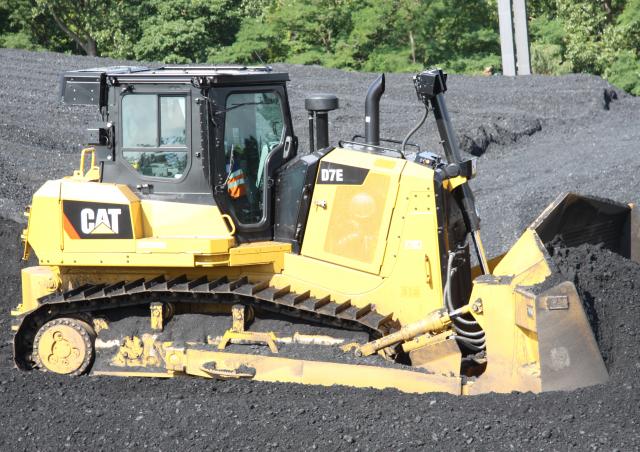

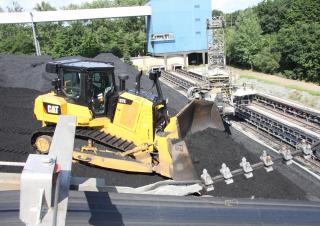

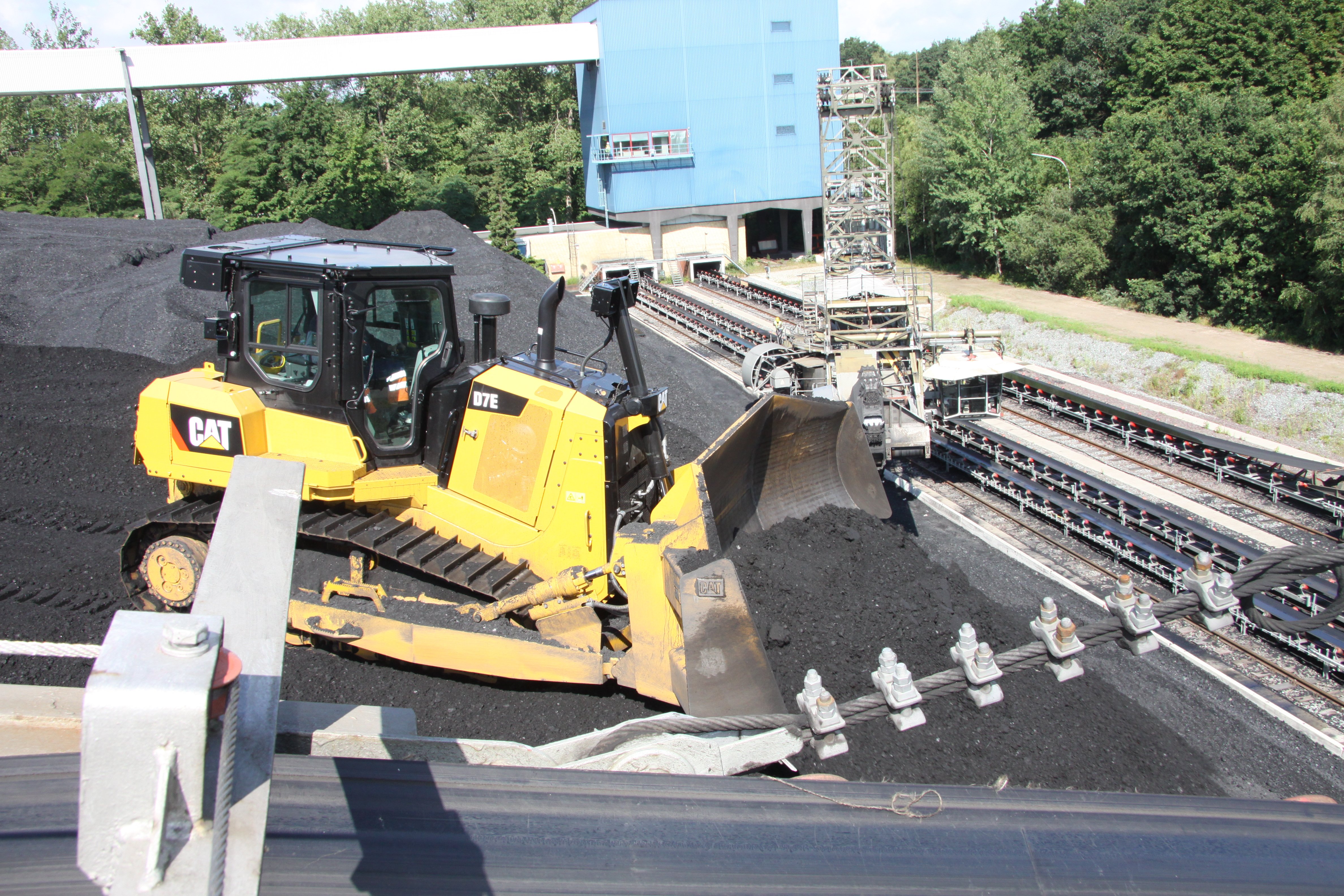

D7E Caterpillar D7E Specifications & Technical Data (2017—2019)
.jpg)
.jpg)
Technical specs - D7E Caterpillar
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 21.95 t
- Transport length
- 4.61 m
- Transport width
- 2.88 m
- Transport height
- 3.36 m
- Blade type
- SU
- Soil pressure
- 0.69 kg/cm²
- Track width
- 660 mm
- Travel speed
- 10.5 km/h
- Front blade width
- 3.71 m
- Model series
- D
- Engine manuf.
- Caterpillar
- Engine type
- C9.3 Acert
- Engine power
- 201 kW
- Displacement
- 9.3 l
- Cylinder bore x stroke
- 115x149 mm
- Emission level
- Tier 4 f
More technical details, like: reverse travel speed, transmission type, max. drawbar pull, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders are available in the full technical specs.
Basic model with ROPS cabin and corresponding blade
Special equipment
- Diesel particulate filter
-
No
- Rear ripper
-
No
- Tilt device
-
No
- Aircondition
-
Yes
Download specalog and datasheets (PDF)
