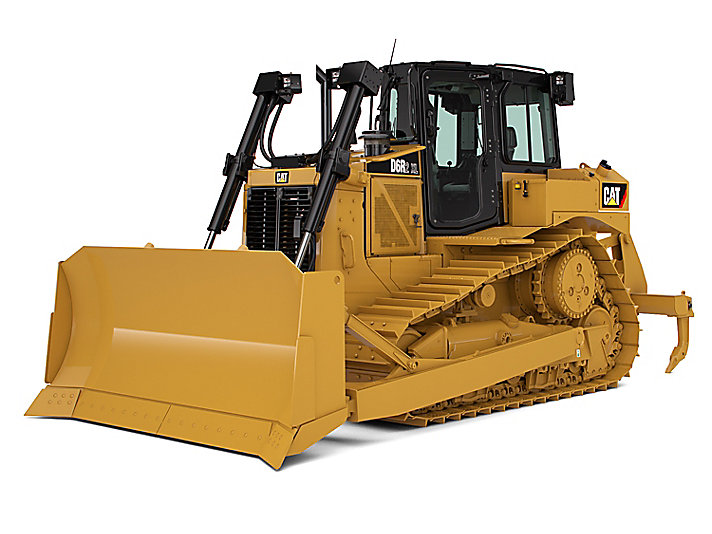

D6R2 LGP Caterpillar D6R2 LGP Specifications & Technical Data (2019—2026)

Weight: 21.66t – Transport length: 4.25m – Transport width: 3.2m – Transport height: 3.35m – Blade type: S – Travel speed: 11.5km/h

D6R2 LGP

Years of manufacture: 2019—2026

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - D6R2 LGP Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 21.66 t

Transport length: 4.25 m

Transport width: 3.2 m

Transport height: 3.35 m

Blade type: S

Travel speed: 11.5 km/h

Reverse travel speed: 14.5 km/h

Front blade width: 4.06 m

Model series: D

Engine manuf.: Caterpillar

Engine type: C9 Acert

Engine power: 158 kW

Displacement: 8.8 l

Cylinder bore x stroke: 112x149 mm

Emission level: Tier 2/ II

More technical details, like: soil pressure, track width, transmission type, max. drawbar pull, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders are available in the full technical specs.

Basic model with ROPS cabin and corresponding blade

Special equipment

Diesel particulate filter: No
Rear ripper: No
Tilt device: No
Aircondition: Yes

Download specalog and datasheets (PDF)

D6R2 LGP Caterpillar Specification for Europe (EN)

Caterpillar D6R2 LGP FAQ

When was the Caterpillar D6R2 LGP manufactured?

The Caterpillar D6R2 LGP was first produced in 2019.

How much does the Caterpillar D6R2 LGP weigh?

The Caterpillar D6R2 LGP weighs 21.66 tons.

What are the transport dimensions of the Caterpillar D6R2 LGP bulldozer?

The Caterpillar D6R2 LGP has a transport length of 4.25 meters, a transport width of 3.2 meters, and a transport height of 3.35 meters.

What are the travel speeds of the Caterpillar D6R2 LGP bulldozer?

The Caterpillar D6R2 LGP bulldozer has a travel speed of 11.5 km/h forward and 14.5 km/h in reverse.

What are the specifications of the primary work tool on the Caterpillar D6R2 LGP bulldozer?

The Caterpillar D6R2 LGP bulldozer is equipped with an angling blade that has a front blade width of 4.06 meters.
