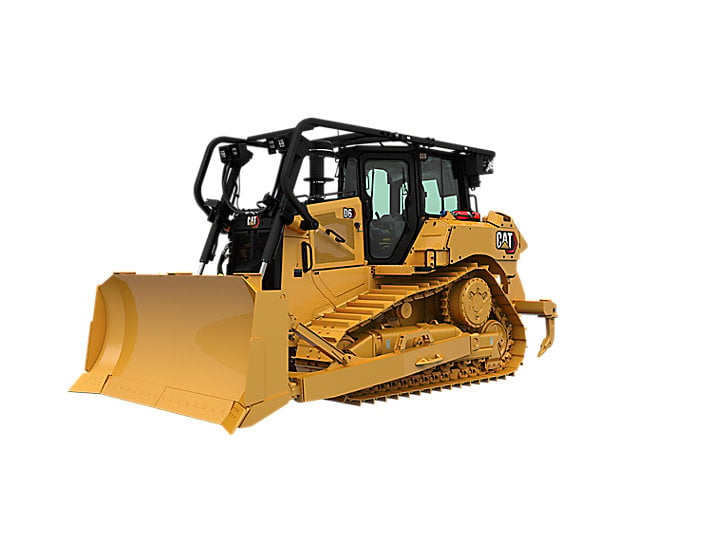

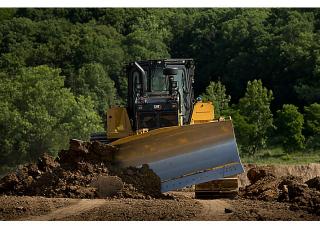

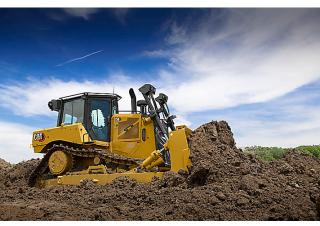

Caterpillar D6 Specifications & Technical Data (2019-2020)

Technical specs - D6 Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 22 t

Transport length: 5.436 m

Transport width: 2.54 m

Transport height: 3.172 m

Track width: 610 mm

Travel speed: 11.7 km/h

Reverse travel speed: 11.7 km/h

Front blade width: 3.312 m

Model series: D

Engine manuf.: Caterpillar

Engine type: C9.3B

Engine power: 161 kW

Displacement: 9.3 l

Cylinder bore x stroke: 115x149 mm

Emission level: Tier 4 F/ V

More technical details, like: blade type, soil pressure, transmission type, max. drawbar pull, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders are available in the full technical specs.

Basic model with ROPS cabin and corresponding blade

Special equipment

Diesel particulate filter: No
Rear ripper: No
Tilt device: No
Aircondition: Yes

Download specalog and datasheets (PDF)

Caterpillar D6 FAQ

When was the Caterpillar D6 manufactured?

The Caterpillar D6 was manufactured from 2019 to 2020.

How much does the Caterpillar D6 bulldozer weigh?

The Caterpillar D6 bulldozer weighs 22 tons.

What are the transport dimensions of the Caterpillar D6 bulldozer?

The Caterpillar D6 bulldozer has a transport length of 5.44 meters, a transport width of 2.54 meters, and a transport height of 3.17 meters.

What are the travel speeds of the Caterpillar D6 bulldozer?

The Caterpillar D6 bulldozer has a travel speed of 11.7 km/h and a reverse travel speed of 11.7 km/h.

What is the track width of the Caterpillar D6 bulldozer's undercarriage?

The Caterpillar D6 bulldozer has a track width of 610 mm.

What is the front blade width of the Caterpillar D6 bulldozer?

The front blade width of the Caterpillar D6 bulldozer is 3.31 meters.

How much is a Caterpillar D6 Bulldozer (2019u20132020) worth?

The residual value of the Caterpillar D6 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Machine inspection

Ask for inspection of your Caterpillar D6 from experts

Mevas is an international operating inspection service for used heavy machinery. Construction machinery inspectors are available in more than 20 countries.

Use this service to minimise the risk when buying used equipment. An inspection by Mevas costs less than repairing a defective hydraulic cylinder.

Enquire machine inspection

Provided by:

Buy & Rent

Compare Caterpillar D6 with similar Bulldozers

Caterpillar D6

Weight:: 22 t

Transport length:: 5.436 m

Transport width:: 2.54 m

Transport height:: 3.172 m

Bell 850J

Weight:: 20.8 t

Transport length:: 5.377 m

Transport width:: 2.4 m

Transport height:: 3.18 m

Foton Lovol FSD7

Weight:: 23.8 t

Transport length:: 5.677 m

Transport width:: 3.5 m

Transport height:: 3.402 m

XGMA XG4161T

Weight:: 20.1 t

Transport length:: 6.447 m

Transport width:: 3.416 m

Transport height:: 3.06 m

Shanghai Pengpu PD165YS

Weight:: 18.2 t

Transport length:: 5.085 m

Transport width:: 3.416 m

Transport height:: 3.254 m
