Caterpillar D5 VPAT Specifications & Technical Data (2019-2026)

Technical specs - D5 VPAT Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 17.18 t

Transport length: 5 m

Transport width: 2.5 m

Transport height: 3.085 m

Track width: 610 mm

Travel speed: 9.8 km/h

Reverse travel speed: 12.2 km/h

Front blade width: 3.272 m

Model series: D

Engine manuf.: Caterpillar

Engine type: C7.1

Engine power: 127 kW

Displacement: 7.1 l

Cylinder bore x stroke: 105x135 mm

Emission level: Tier 4 F/ V

More technical details, like: blade type, soil pressure, transmission type, max. drawbar pull, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders are available in the full technical specs.

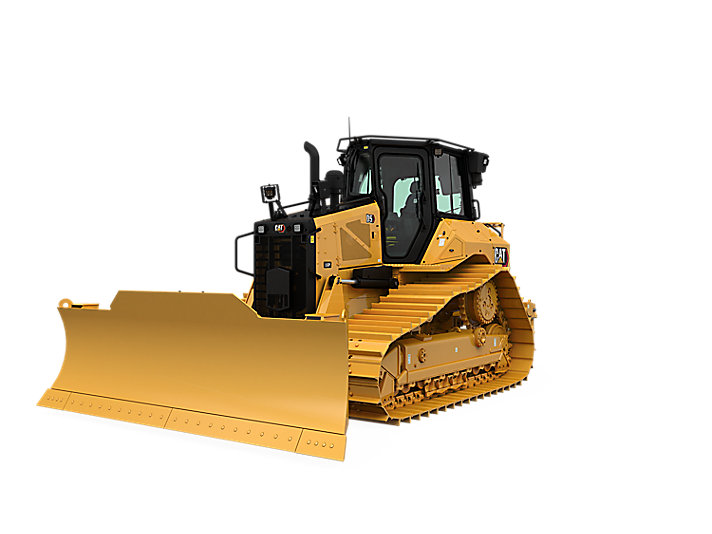

Basic model with ROPS cabin and corresponding blade

Special equipment

Diesel particulate filter: No
Rear ripper: No
Tilt device: No
Aircondition: Yes

Download specalog and datasheets (PDF)

Caterpillar D5 VPAT FAQ

When was the Caterpillar D5 VPAT manufactured?

The Caterpillar D5 VPAT was first produced in 2019.

How much does the Caterpillar D5 VPAT weigh?

The Caterpillar D5 VPAT weighs 17.18 tons.

What are the transport dimensions of the Caterpillar D5 VPAT bulldozer?

The Caterpillar D5 VPAT has a transport length of 5 meters, a transport width of 2.5 meters, and a transport height of 3.09 meters.

What are the travel speeds of the Caterpillar D5 VPAT bulldozer?

The Caterpillar D5 VPAT bulldozer has a travel speed of 9.8 km/h forward and 12.2 km/h in reverse.

What is the track width of the Caterpillar D5 VPAT's undercarriage?

The Caterpillar D5 VPAT has a track width of 610 mm.

What is the width of the front blade on the Caterpillar D5 VPAT bulldozer?

The front blade of the Caterpillar D5 VPAT bulldozer is 3.27 meters wide.

How much is a Caterpillar D5 VPAT Bulldozer (2019u20132025) worth?

The residual value of the Caterpillar D5 VPAT depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Caterpillar D5 VPAT overview

Hydraulic system

Air Conditioning System

The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.36 kg of refrigerant, which has a CO2 equivalent of 1.946 metric tonnes.
