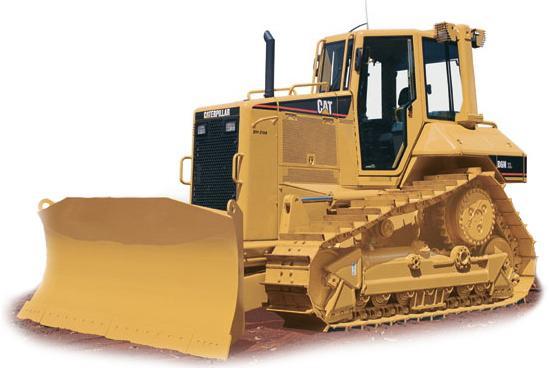

Caterpillar D 6 N XL-SU Specifications & Technical Data (2003-2006)

Technical specs - D 6 N XL-SU Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 16 t

Transport length: 4.92 m

Transport width: 2.492 m

Transport height: 3.08 m

Blade type: SU

Soil pressure: 0.51 kg/cm²

Track width: 610 mm

Travel speed: 10 km/h

Front blade width: 3.19 m

Model series: D

Engine manuf.: Caterpillar

Engine type: 3126 HEUI

Engine power: 108 kW

Displacement: 7.2 l

Revolutions at max torque: 2100 rpm

More technical details, like: reverse travel speed, transmission type, max. drawbar pull, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level, undercarriage type, grade control available, platform, engine manufacturer...

More technical details, like: reverse travel speed, transmission type, max. drawbar pull, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level, undercarriage type, grade control available, platform, engine manufacturer, engine model, emission rating, aspiration, rated speed, engine output - net, transmission type, track rollers, raised sprocket, shoe - width, shoe - type, number of shoes, service brake type, height - max, height - top of rops, ground clearance, width - over tracks, track length - on ground, length - no blade, blade, blade - width, blade - height, blade - dig depth, blade - lift clearance, blade - tilt, steering - differential, steering - clutches and brakes, fuel tank, blade - capacity, ground bearing pressure, operating weight are available in the full technical specs.

Basic model with ROPS cabin and corresponding blade

Special equipment

Diesel particulate filter: No
Rear ripper: No
Tilt device: No
Aircondition: Yes

Download specalog and datasheets (PDF)

D 6 N XL-SU Caterpillar Specification for Europe (EN)

Caterpillar D 6 N XL-SU FAQ

When was the Caterpillar D 6 N XL-SU manufactured?

The Caterpillar D 6 N XL-SU was manufactured from 2003 to 2006.

How much does the Caterpillar D 6 N XL-SU weigh?

The Caterpillar D 6 N XL-SU weighs 16 tons.

What are the transport dimensions of the Caterpillar D 6 N XL-SU bulldozer?

The Caterpillar D 6 N XL-SU has a transport length of 4.92 meters, a transport width of 2.49 meters, and a transport height of 3.08 meters.

What is the travel speed of the Caterpillar D 6 N XL-SU bulldozer?

The Caterpillar D 6 N XL-SU bulldozer has a travel speed of 10 km/h.

What are the undercarriage specifications of the Caterpillar D 6 N XL-SU bulldozer?

The Caterpillar D 6 N XL-SU bulldozer has a track width of 610 mm and a soil pressure of 0.51 kg/cmu00b2.

What are the specifications of the primary work tool blade on the Caterpillar D 6 N XL-SU?

The Caterpillar D 6 N XL-SU is equipped with a semi-U-blade that has a front blade width of 3.19 meters.
