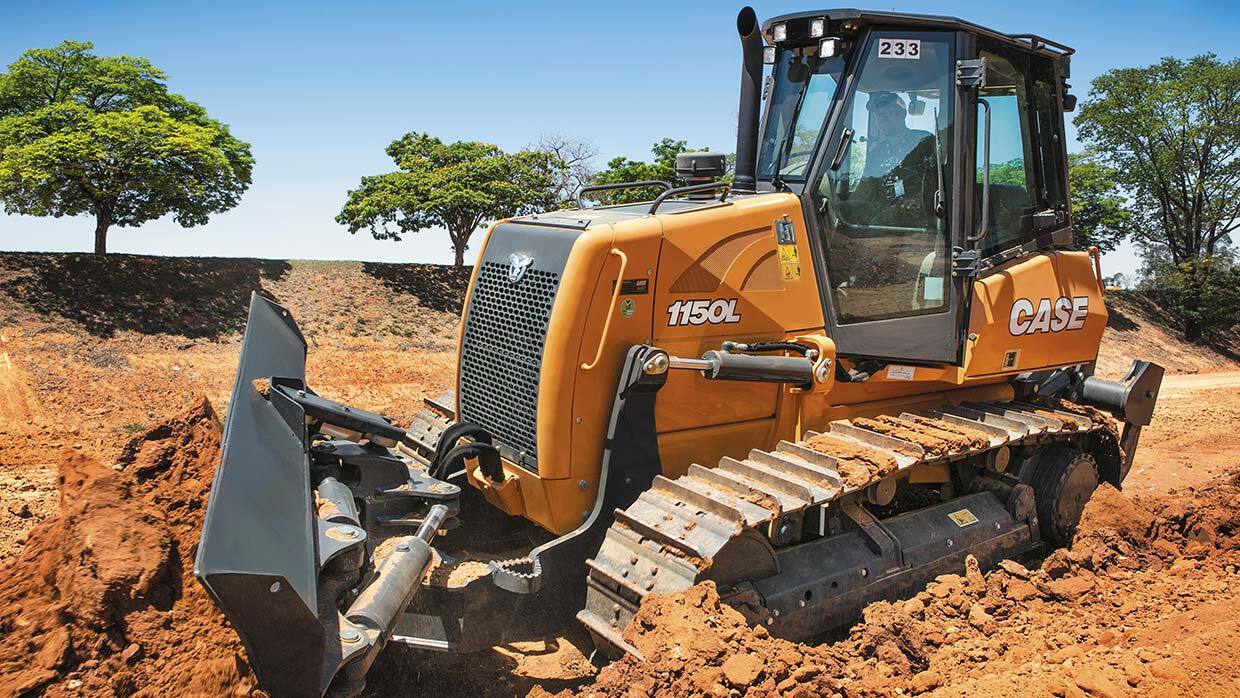

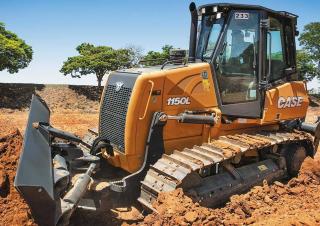

1150L Case 1150L Specifications & Technical Data (2022—2026)
Technical specs - 1150L Case
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 13.625 t
- Transport length
- 5.973 m
- Transport width
- 3.048 m
- Transport height
- 2.882 m
- Track width
- 508 mm
- Travel speed
- 9.7 km/h
- Reverse travel speed
- 9.7 km/h
- Front blade width
- 3.048 m
- Model series
- L
- Engine manuf.
- FPT
- Engine type
- F4HE9684K
- Engine power
- 97 kW
- Displacement
- 6.7 l
- Revolutions at max torque
- 1800 rpm
- No. of cylinders
- 6
- Emission level
- Tier 3
More technical details, like: blade type, soil pressure, transmission type, max. drawbar pull, dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.
Basic model with ROPS cabin and corresponding blade
Special equipment
- Diesel particulate filter
-
No
- Rear ripper
-
Yes
- Tilt device
-
Yes
- Aircondition
-
Yes
