G 612 Volvo G 612 Specifications & Technical Data (1965—1969)

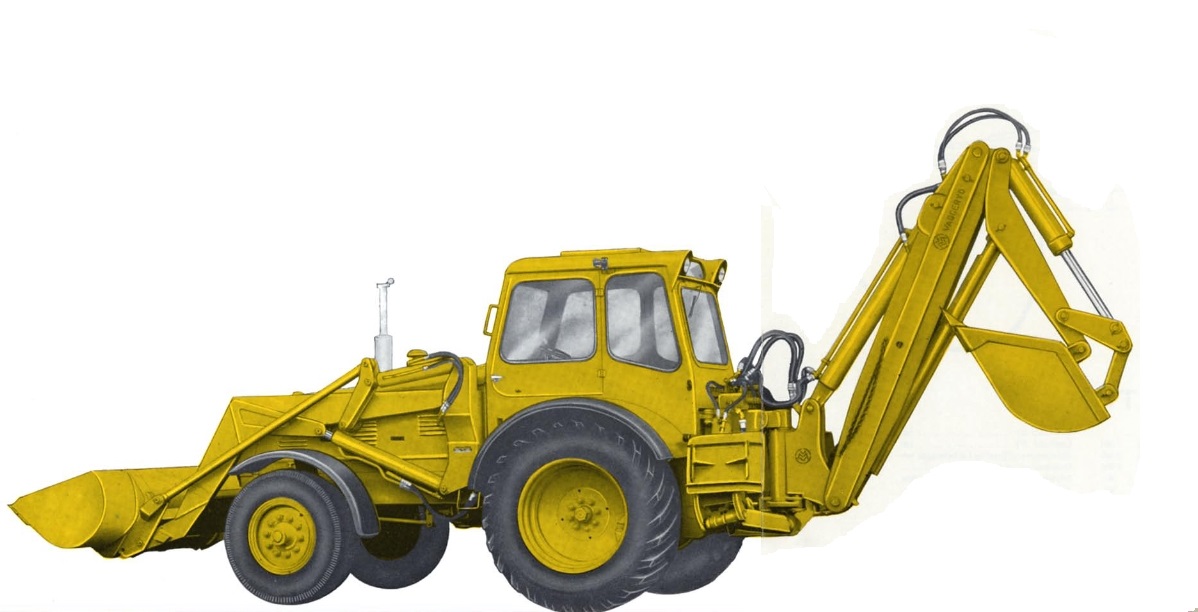

The Volvo G 612 Backhoe Loader, manufactured from 1965 to 1969, weighs 7.35 tons and has a transport length of 5.7 meters. It has …

The Volvo G 612 Backhoe Loader, manufactured from 1965 to 1969, weighs 7.35 tons and has a transport length of 5.7 meters. It has a bucket capacity of 1.7 cubic meters and can dredge up to a depth of 3.8 meters. The bucket width is 2 meters, and it can reach a maximum discharge height of 2.7 meters. With a maximum horizontal reach of 5.3 meters, it has a transport height of 3.2 meters. Additionally, it has a backhoe bucket capacity of 0.17 cubic meters.

Backhoe Loaders Volvo G 612

Visit Volvo live at

Technical specs - G 612 Volvo

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
7.35 t
Standard tyres
F:9-20/10. R:14-30/10
Bucket width
2 m
Bucket capacity
1.7 m³
Bucket capacity backhoe
0.17 m³
Transport length
5.7 m
Transport height
3.2 m
Max. Reach horizontal
5.3 m
Dredging depth
3.8 m
Max. discharge height
2.7 m
Engine manuf.
Volvo
Engine type
N/A

More technical details, like: drive, transport width, tear-out force, tear-out force backhoe, travel speed, model series, engine power, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders...

More technical details, like: drive, transport width, tear-out force, tear-out force backhoe, travel speed, model series, engine power, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket

Special equipment

Outrigger stabilisers
No
Clamshell
No
Forklift utility
No
Grabber
No
Diesel particulate filter
No
Aircondition
No

Download datasheets (PDF)

Volvo G 612 FAQ

When was the Volvo G 612 backhoe loader manufactured?

The Volvo G 612 backhoe loader was manufactured from 1965 to 1969.

How much does the Volvo G 612 backhoe loader weigh?

The Volvo G 612 backhoe loader weighs 7.35 tons.

What are the transport dimensions of the Volvo G 612 backhoe loader?

The Volvo G 612 backhoe loader has a transport length of 5.7 meters and a transport height of 3.2 meters.

What are the undercarriage tyre specifications of the Volvo G 612 backhoe loader?

The Volvo G 612 backhoe loader has standard tyres with front tyres sized 9-20/10 and rear tyres sized 14-30/10.

What are the dredging depth and maximum horizontal reach of the Volvo G 612 backhoe loader?

The Volvo G 612 backhoe loader has a dredging depth of 3.8 meters and a maximum horizontal reach of 5.3 meters.

What is the maximum discharge height of the Volvo G 612?

The Volvo G 612 has a maximum discharge height of 2.7 meters.

What are the specifications of the primary work tools on the Volvo G 612 backhoe loader?

The Volvo G 612 features a front loader bucket with a capacity of 1.7 cubic meters and a width of 2 meters, and a backhoe bucket with a capacity of 0.17 cubic meters.

How much is a Volvo G 612 Backhoe loader (1965u20131969) worth?

The residual value of the Volvo G 612 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
