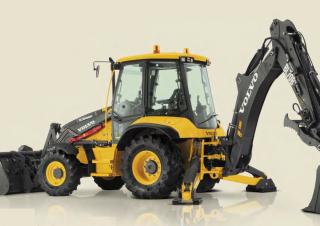

BL 70B Volvo BL 70B Specifications & Technical Data (2011—2015)

The Volvo BL 70B is a backhoe loader manufactured by Volvo from 2011 to 2015. It has a weight of 7.61 tons and a transport length …

The Volvo BL 70B is a backhoe loader manufactured by Volvo from 2011 to 2015. It has a weight of 7.61 tons and a transport length of 7.25 meters. The bucket capacity is 1 cubic meter, with a tear-out force of 55.4 kilonewtons. It can dredge up to a depth of 4.54 meters and has a bucket width of 0.61 meters. The maximum discharge height is 6.33 meters, and it can reach a maximum horizontal distance of 6.03 meters. The travel speed of the machine is 21.1 kilometers per hour. It has a transport width of 2.35 meters and a transport height of 3.75 meters.

Backhoe Loaders Volvo BL 70B

Visit Volvo live at

Technical specs - BL 70B Volvo

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
7.61 t
Standard tyres
F:12L-16.5. R:19.5-24/10PR
Bucket width
0.61 m
Bucket capacity
1 m³
Drive
A
Transport length
7.25 m
Transport width
2.35 m
Transport height
3.75 m
Tear-out force
55.4 kN
Max. Reach horizontal
6.03 m
Dredging depth
4.54 m
Max. discharge height
6.33 m
Travel speed
21.1 km/h
Engine manuf.
Volvo
Engine type
D5D CDE3
Engine power
74.9 kW
Displacement
4.8 l
Revolutions at max torque
2200 rpm
Max. torque
420 Nm
No. of cylinders
4

More technical details, like: bucket capacity backhoe, tear-out force backhoe, model series, dimension lxwxh, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket

Special equipment

Outrigger stabilisers
No
Clamshell
No
Forklift utility
No
Grabber
No
Diesel particulate filter
No
Aircondition
No

Download datasheets (PDF)

Volvo BL 70B FAQ

When was the Volvo BL 70B manufactured?

The Volvo BL 70B was manufactured from 2011 to 2015.

How much does the Volvo BL 70B backhoe loader weigh?

The Volvo BL 70B backhoe loader weighs 7.61 tons.

What are the transport dimensions of the Volvo BL 70B backhoe loader?

The Volvo BL 70B has a transport length of 7.25 meters, a transport width of 2.35 meters, and a transport height of 3.75 meters.

What is the travel speed of the Volvo BL 70B backhoe loader?

The Volvo BL 70B backhoe loader has a travel speed of 21.1 km/h.

What are the undercarriage specifications of the Volvo BL 70B backhoe loader?

The Volvo BL 70B backhoe loader features an all-wheel drive and standard tyres sized Front: 12L-16.5 and Rear: 19.5-24/10PR.

What are the excavation performance specifications of the Volvo BL 70B backhoe loader?

The Volvo BL 70B has a dredging depth of 4.54 meters and a maximum horizontal reach of 6.03 meters.

What is the tear-out force of the Volvo BL 70B backhoe loader?

The Volvo BL 70B backhoe loader has a tear-out force of 55.4 kN.

What is the material handling capacity of the Volvo BL 70B in terms of discharge height?

The Volvo BL 70B has a maximum discharge height of 6.33 meters.

What are the specifications of the bucket on the Volvo BL 70B backhoe loader?

The Volvo BL 70B backhoe loader has a bucket with a capacity of 1 cubic meter and a width of 0.61 meters.

How much is a Volvo BL 70B Backhoe loader (2011u20132015) worth?

The residual value of the Volvo BL 70B depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
