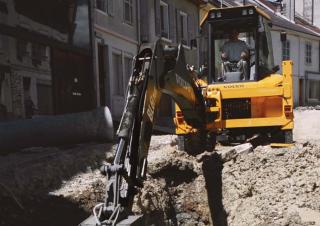

BL 61 Plus Volvo BL 61 Plus Specifications & Technical Data (2006—2011)
Visit Volvo live at
.jpg){kind=logo}
Technical specs - BL 61 Plus Volvo
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 8.17 t
- Standard tyres
- F:12.5/80-18. R:16.9-28
- Bucket width
- 2.35 m
- Bucket capacity
- 1.3 m³
- Bucket capacity backhoe
- 0.21 m³
- Drive
- A
- Transport length
- 5.83 m
- Transport width
- 2.48 m
- Transport height
- 3.71 m
- Tear-out force
- 49.6 kN
- Max. Reach horizontal
- 7.18 m
- Dredging depth
- 4.28 m
- Max. discharge height
- 5.58 m
- Travel speed
- 35.9 km/h
- Engine manuf.
- Volvo
- Engine type
- D4D
- Engine power
- 70 kW
- Displacement
- 4.04 l
- Revolutions at max torque
- 2200 rpm
- Max. torque
- 390 Nm
- No. of cylinders
- 4
More technical details, like: tear-out force backhoe, model series, dimension lxwxh, cylinder bore x stroke, emission level are available in the full technical specs.
Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket
Special equipment
- Outrigger stabilisers
-
No
- Clamshell
-
No
- Forklift utility
-
No
- Grabber
-
No
- Diesel particulate filter
-
No
- Aircondition
-
No
